ProForm 831.21521.0 Home Gym User Manual



6

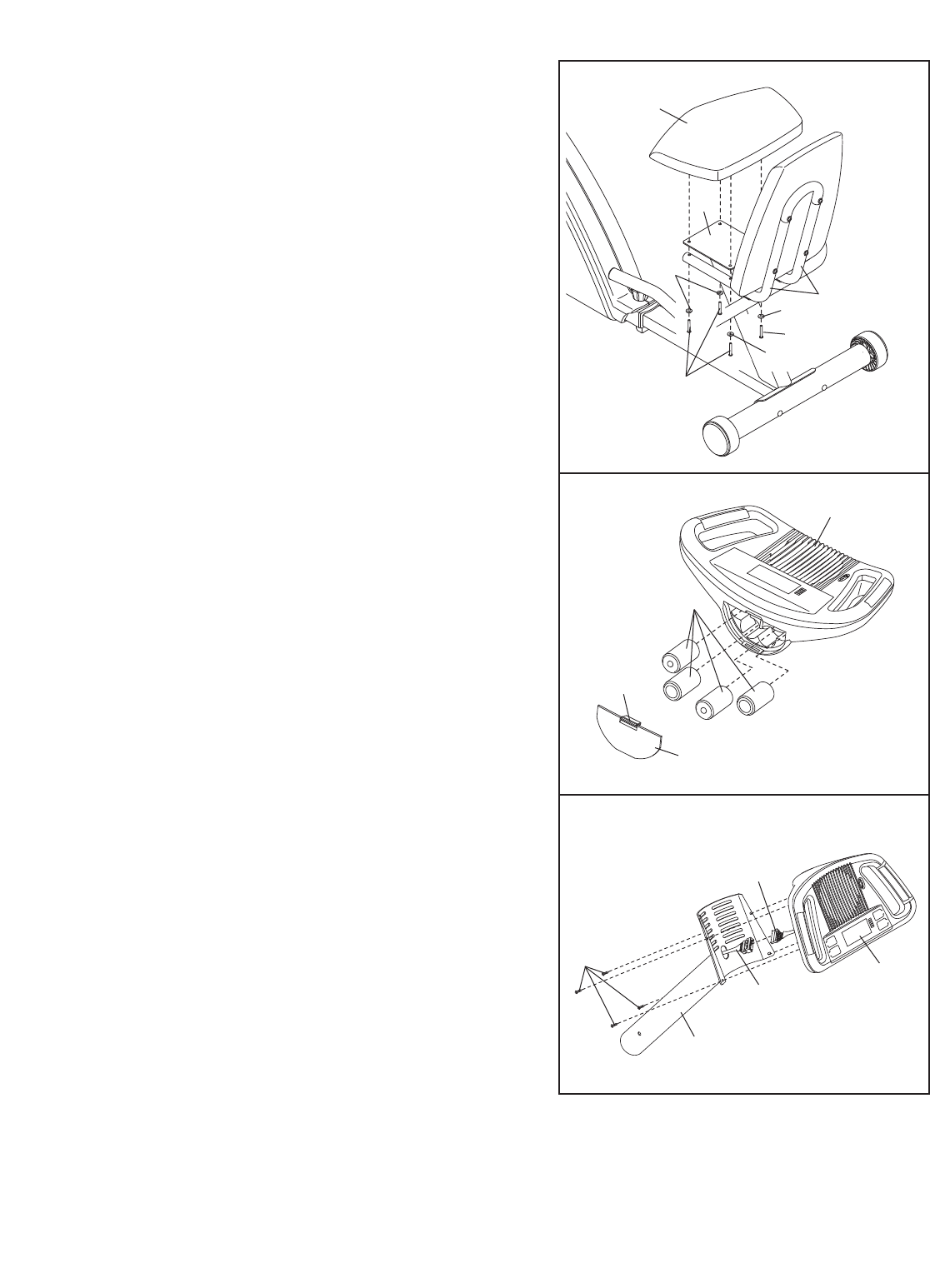

7. Connect the console wire harness to the Upper Wire
Harness (36). Insert the console wire harness into the
Upright (13). Attach the Console (16) to the Upright
with four M4 x 16mm Round Head Screws (52).
7
16
13
36
Console
Wire
Harness
52
6
Tab
Battery Door
Batteries
16
6. The Console (16) requires four D batteries (not includ-
ed); alkaline batteries are recommended. Press the
tab on the battery door and remove it. Insert four bat-
teries into the Console as shown.
Make sure that the
batteries are oriented as shown by the markings
on the battery door. Reattach the battery door.
12
55
55
55
7
5
49
2
49
5. Have another person hold the Seat Frames (7) under
the Rear Frame (2) as shown. Attach the Seat Frames
a
nd the Seat (12) to the Rear Frame with four M6 x
42mm Button Screws (49) and four M6 Washers (55).
See step 3. Tighten the two M8 x 70mm Button
Bolts (54).
See step 4. Tighten the four M6 x 38mm Button
Screws (48).
