ProForm 831.21521.0 Home Gym User Manual



12
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of liquid dish soap.
Important: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 6 on page 6.

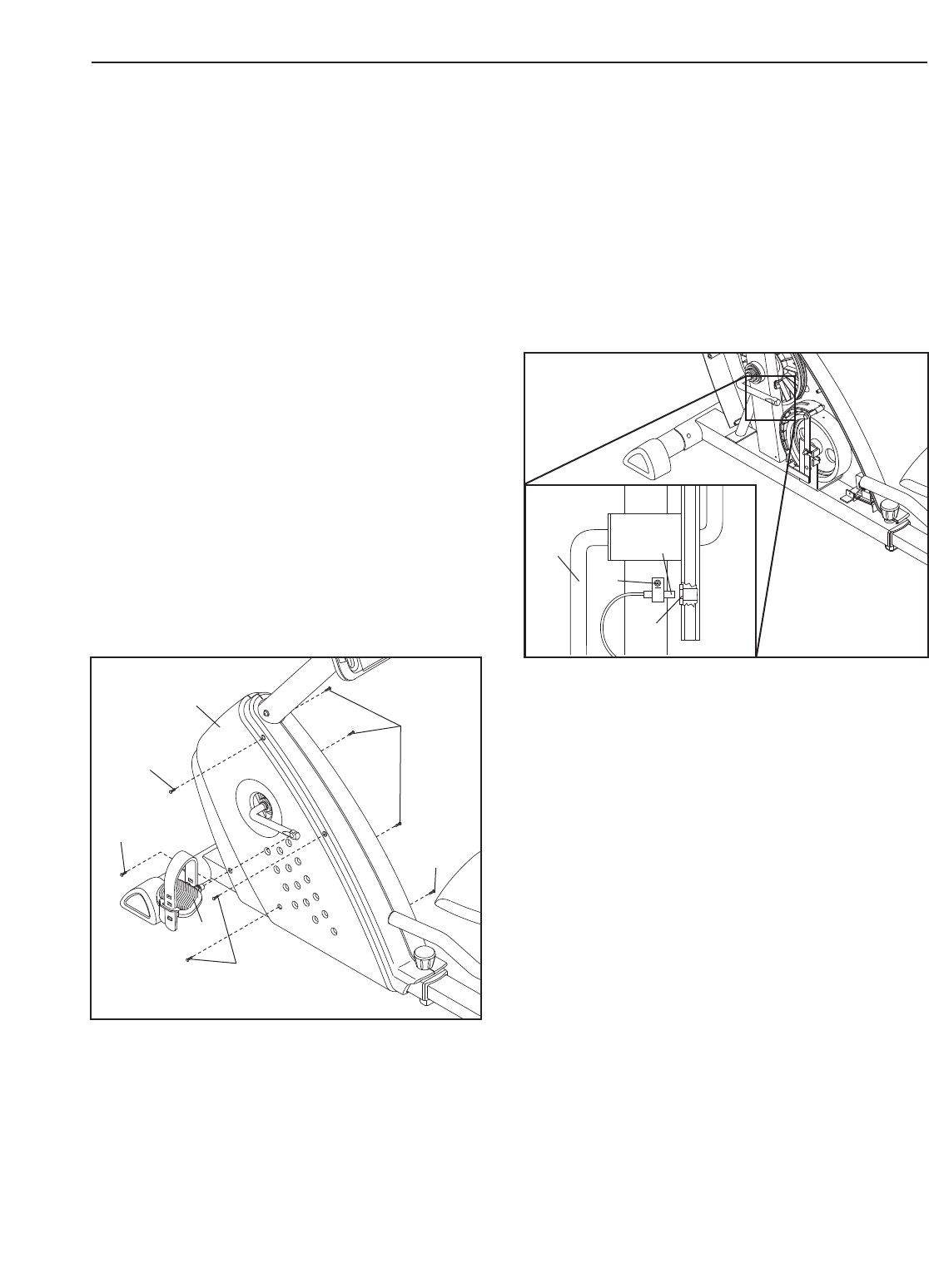

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Left Side Shield (9).
Using an adjustable wrench, turn the Left Pedal (24)
clockwise and remove it. Next, remove the seven
M4 x 16mm Screws (57) and the M4 x 25mm Screw
(45). Then, carefully remove the Left Side Shield.
With the left side shield removed, locate the Reed
Switch (43). Turn the Crank (31) until the Magnet (38)
is aligned with the Reed Switch. Next, loosen, but do
not remove, the indicated M4 x 16mm Screw (57).
Slide the Reed Switch slightly closer to or away from
the Magnet, and then retighten the Screw. Turn the
Crank for a moment. Repeat until the console dis-
plays correct feedback. When the Reed Switch is cor-
rectly adjusted, reattach the left side shield and the
left pedal.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly,
see step 5 on page 9.
MAINTENANCE AND TROUBLESHOOTING
