7

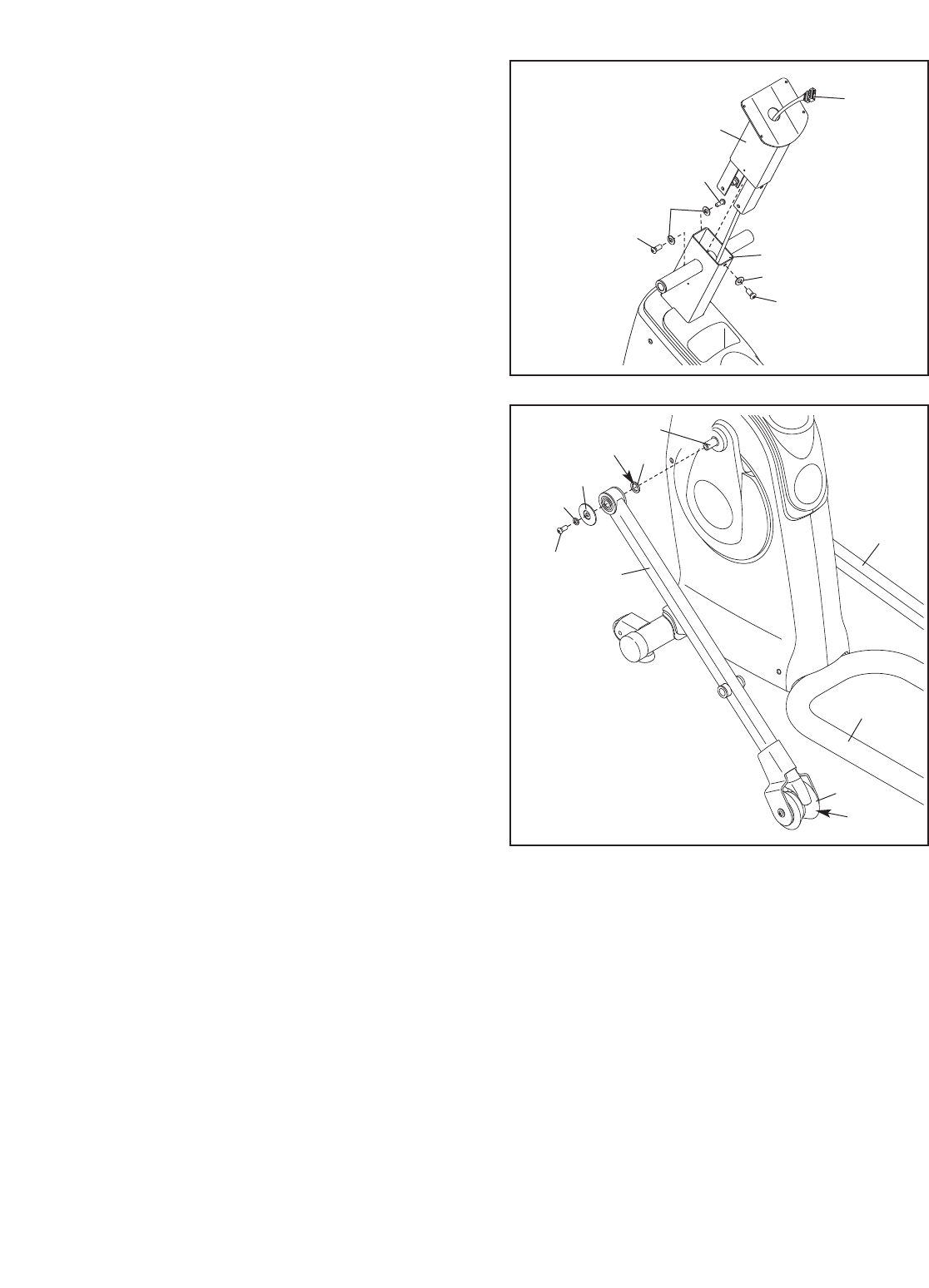

4. Have a second person hold the Upright (6) near
t
he Frame (2) as shown.
P
ull the Wire Harness (48) out of the Frame (2)
and insert it upward through the Upright (6). Do
not let the Wire Harness fall into the Upright; use
a piece of tape or an elastic band to hold the
W
ire Harness in place until step 12.
Insert the Upright (6) into the Frame (2). Attach
the Upright with three M8 x 16mm Button Screws
(95) and three Star Washers (100).
Avoid pinch-
ing the Wire Harness (48) between the
Upright and the Frame.
6
4
9
5
95
100
2
95
100
48
5. Identify the Left Roller Leg (12), which is marked
with a “Left” sticker. Orient the Left Roller Leg as
shown near the left Crank Arm (36).
Apply a small amount of the included grease to
both sides of a Wave Washer (98). Also, apply
grease to the Roller (22) on the Left Roller Leg
(12); spread the grease evenly around the
Roller.
Slide the Wave Washer (98) onto the left Crank
Arm (36). Next, slide the Left Roller Leg (12)
onto the Crank Arm and set the Roller (22) on
the Base (1). Attach the Left Roller Leg with an
M10 x 23mm Shoulder Screw (80), an M10 x
20mm x 1.5mm Washer (84), and a Crank Axle
Cap (30).
Repeat this step to attach the Right Roller
Leg (21) to the right Crank Arm (not shown).
5
36
1
84
30
98
22
Grease
80
12
21
Grease
