12. The Console (5) requires four 1.5V “D” batteries
(not included); alkaline batteries are recommend-
e
d. I
MPORTANT: If the ellipical exerciser has
been exposed to cold temperatures, allow it
t
o warm to room temperature before insert-
ing batteries into the Console. If you do not
do this, the console displays or other elec-
tronic components may become damaged.

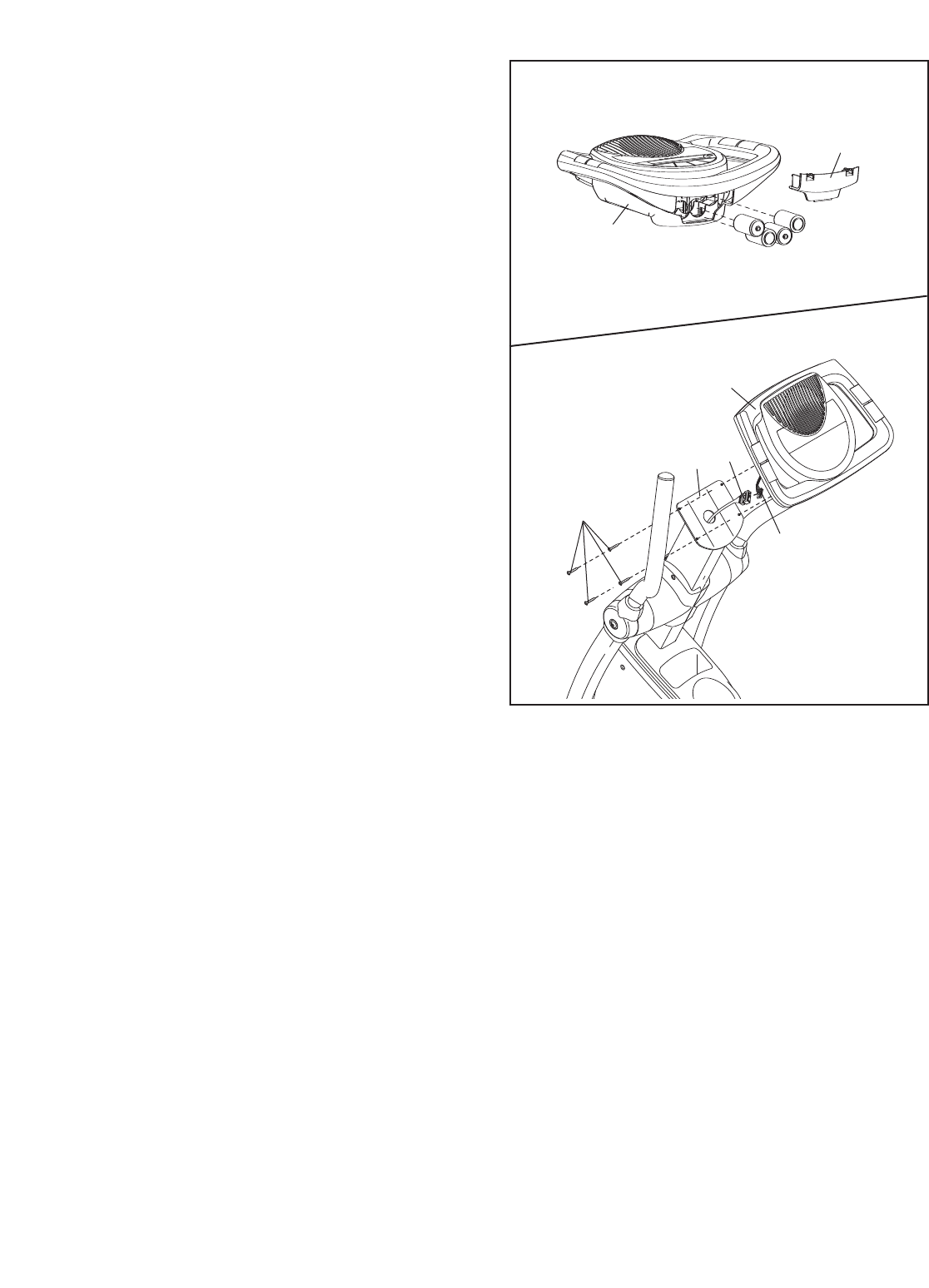

See the inset drawing. Remove the battery cover
from the Console and insert four batteries into
the Console. Make sure that the batteries are ori-
ented as shown by the diagram in the battery
compartment. Then, reattach the battery cover.
Note: The Console (5) can be operated with an
optional power supply instead of batteries.
To
purchase a power supply, call the toll-free
telephone number on the front cover of this
manual. Plug one end of the power supply into
the jack on the console. Plug the other end of
the power supply into an appropriate outlet that
is properly installed in accordance with all local
codes and ordinances.
Have a second person hold the Console (5) near
the Upright (6) as shown. Connect the console
wire to the Wire Harness (48). Insert the excess
wire downward into the Upright.
Attach the Console (5) to the Upright (6) with
four M4 x 16mm Self-tapping Screws (79).
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser
.
1
2
5
5
B
attery Cover
Console
Wire
48
6
79
