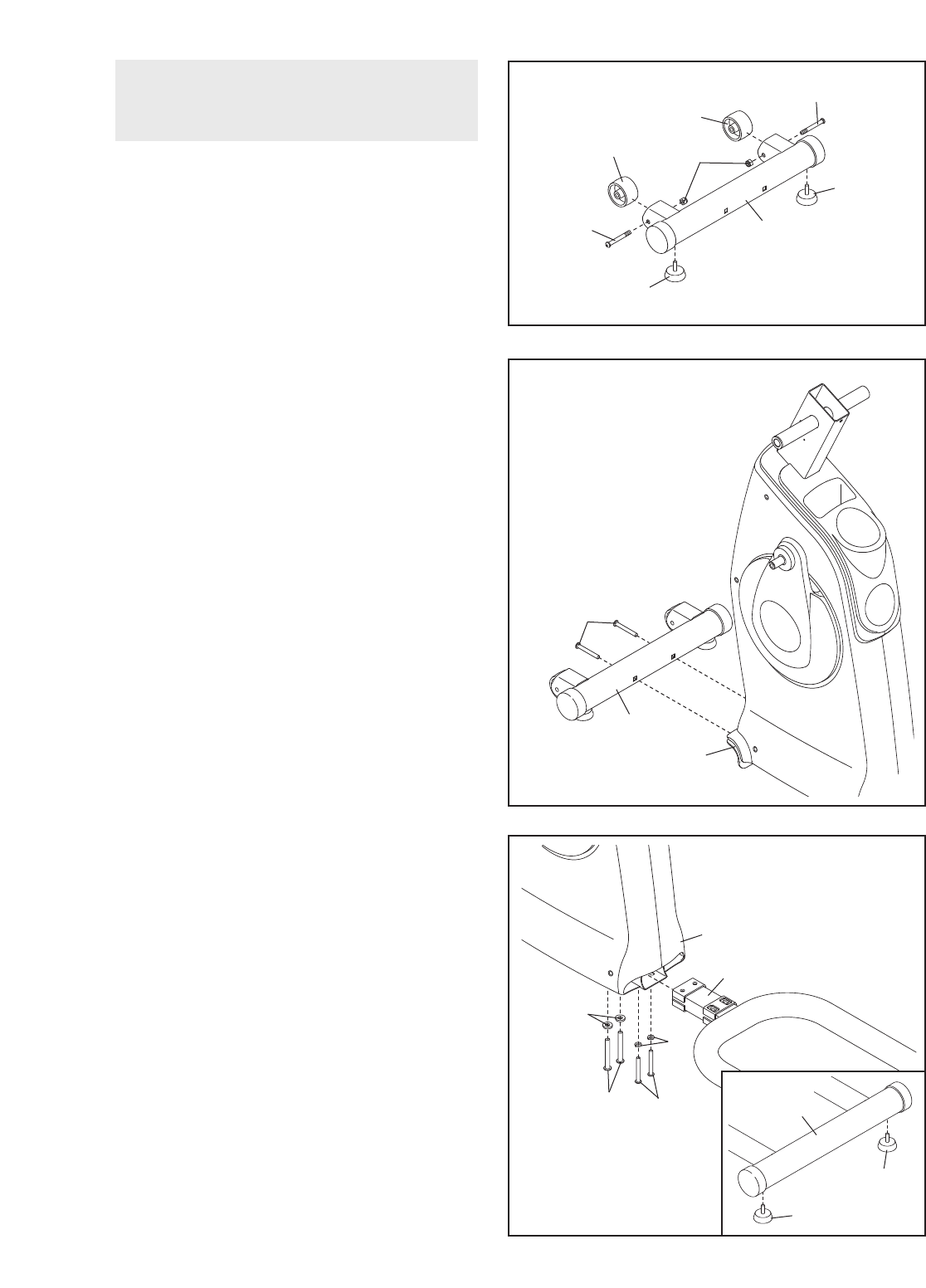

Orient the the Front Stabilizer (35) as shown.
Attach the two Wheels (25) to the Front Stabilizer
with two M10 x 62mm Bolts (89) and two M10
Nylon Locknuts (97).
Attach two Feet (26) to the underside of the
Front Stabilizer (35).
2. Have a second person tip the Frame (2) back-
ward. Attach the Front Stabilizer (35) to the
Frame with two M10 x 78mm Button Screws (90).
97
26
26
1
2
2
8
9
89
2
5
25
35
90
35
To make assembly easier, read the
i
nformation on page 5 before you begin
assembling the elliptical exerciser.
3. Orient the Base (1) near the Frame (2) as
shown. See the inset drawing. Attach two Feet
(26) to the underside of the Base.
Have a second person tip the Frame (2) forward.
Insert the Base (1) into the Frame.
Attach the
Base with two M10 x 62mm Bolts (89), two M10
Spacers (76), two M8 x 48mm Button Screws
(78), and two M8
Split W
ashers (72).
