5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .

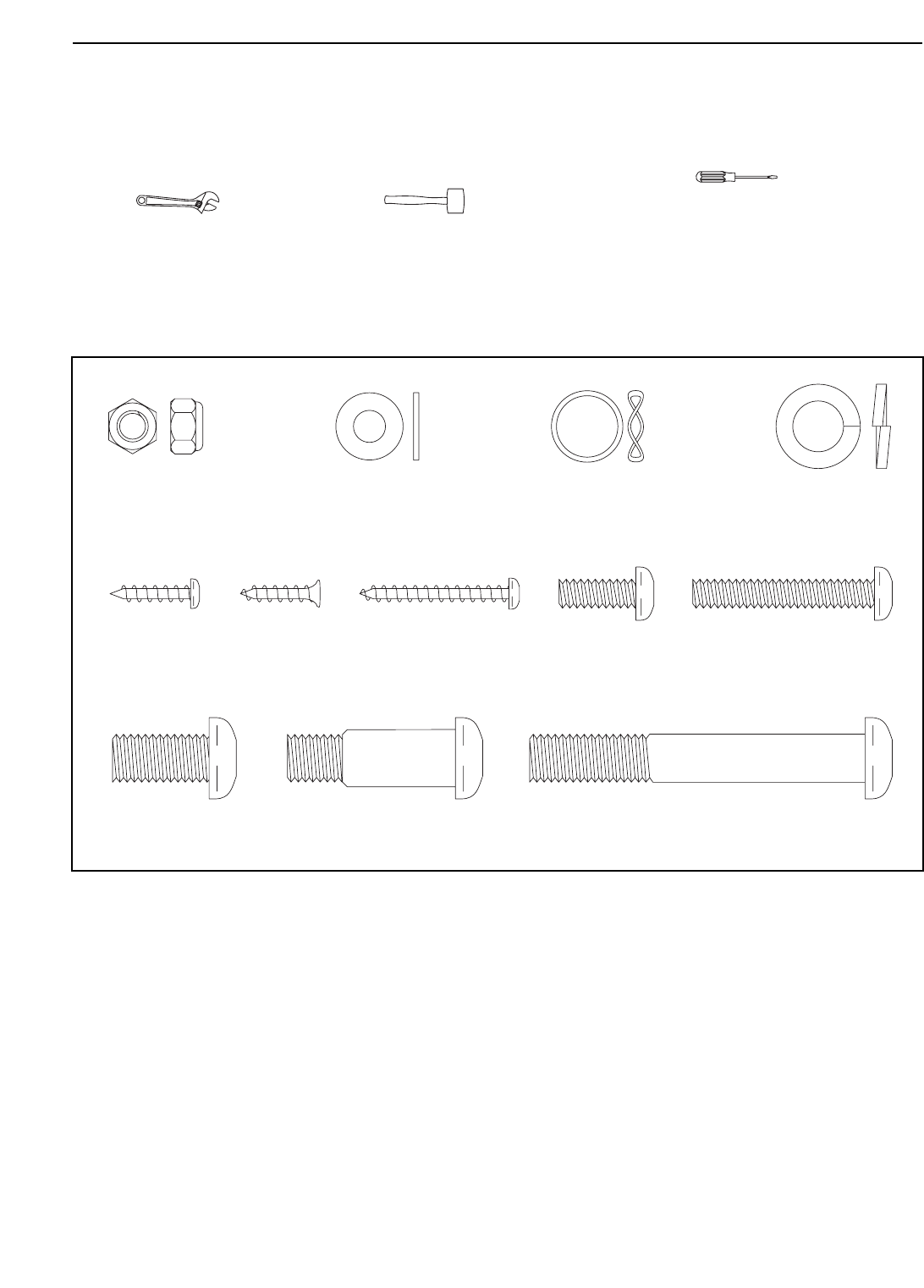

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been preassembled. If a part is missing,
call 1-888-533-1333.
M10 x 70mm Button Screw (75)–6
M4 x 16mm
Screw (84)–14
M4 x 32mm Screw
(95)–2
M4 x 16mm
Flat Head
Screw (94)–4
M6 x 16mm Button
Screw (80)–6
M6 x 38mm Button
Bolt (76)–4
Wave Washer
(88)–6
M10 Split
Washer (78)–10
M6 Nylon
Locknut (77)–4
M10 x 20mm Button
Screw (79)–4
M10 x 35mm Shoulder
Screw (63)–2
M6 Washer
(118)–4
