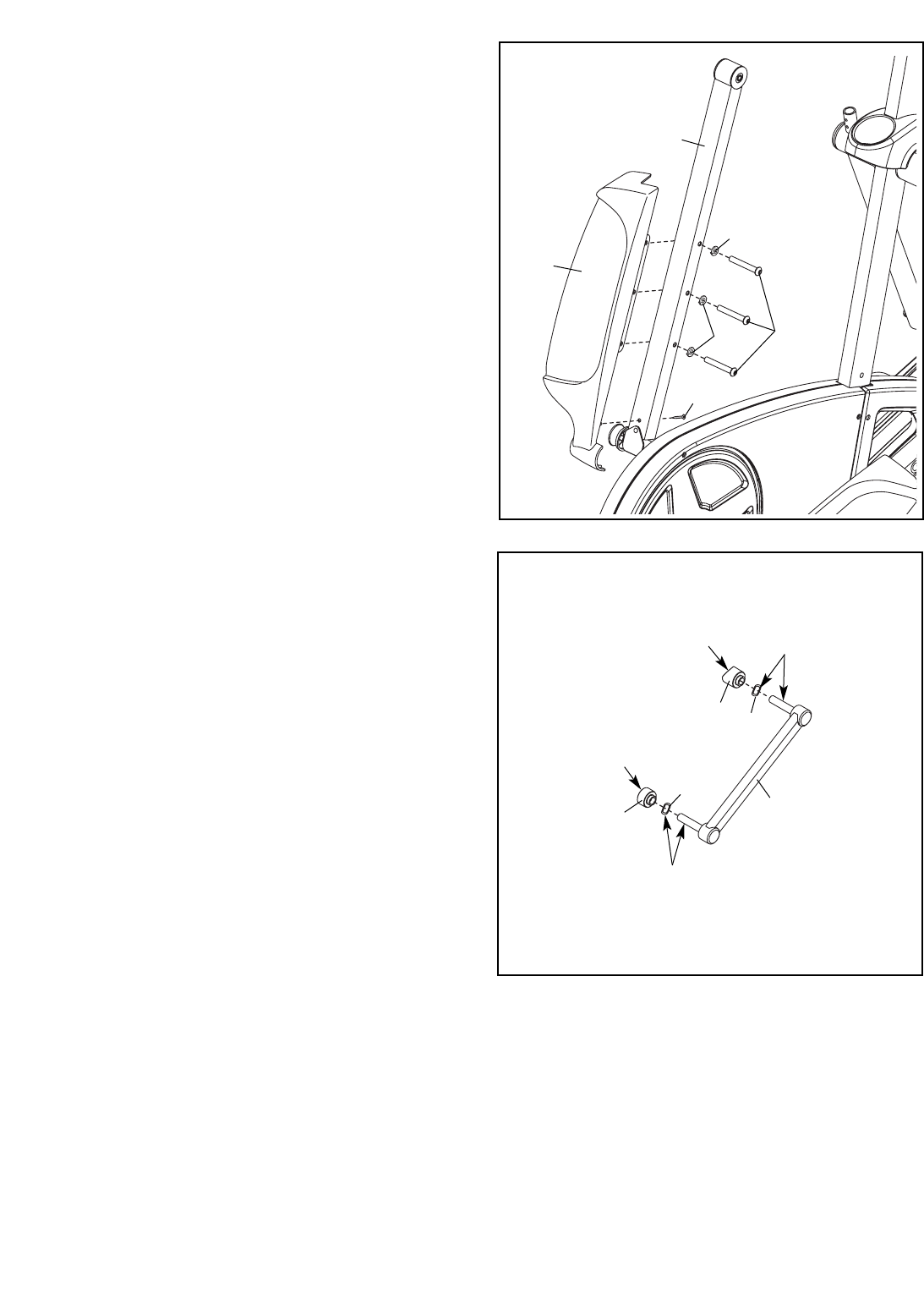

10. Apply a small amount of grease to two Wave
Washers (88) and to the axles on a Pedal Arm
Axle (21).
Identify an Upper Body Leg Spacer (113), which
has a curved side. Slide a Wave Washer (88)
and the Upper Body Leg Spacer onto the indi-
cated axle of the Pedal Arm Axle (21); make
sure that the curved side of the Upper Body
Leg Spacer is facing away from the Pedal
Arm Axle.
Identify a Pedal Leg Spacer (114), which has a
flat side. Slide a Wave Washer (88) and the
Pedal Leg Spacer onto the other axle of the
Pedal Arm Axle (21); make sure that the flat
side of the Pedal Leg Spacer is facing away
from the Pedal Arm Axle.
Repeat this step for the other Pedal Arm
Axle (not shown).
9
114
113
Grease
Grease
Curved Side
Flat Side
88
88
21
9. Attach the Left Pedal (12) to the left Pedal Arm
(14) with three M10 x 70mm Button Screws
(75), three M10 Split Washers (78), and an M4
x 16mm Screw (84).
Repeat this step for the other side of the
elliptical exerciser.
14
75
78
78
12
84
