22 Assembling and Maintaining UBK 800-Series Upright Exercise Bikes
7. Using a piece of tape or a plastic tie, bind together the
upper ends of all cables.
8. While your assistant holds the upright support in place
over the body assembly, thread the cables upward
through the support. When you are finished, use a piece
of tape to secure the upper connectors of the cables at
the top of the support.
9. Slide the upright support into position so that its screw
holes line up with the corresponding holes on the body
assembly, as shown in the following illustration.
Note: If the support is positioned correctly, it rests on a
metal tab in the upright support channel.

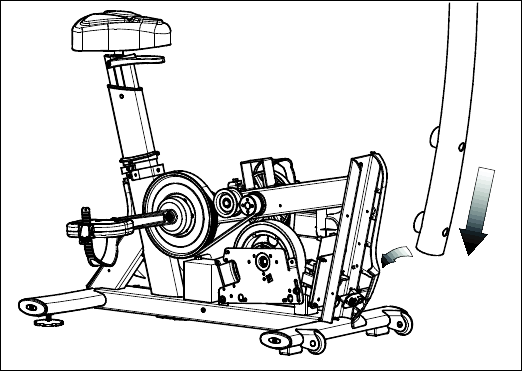

Figure 5: Upright support insertion
Important: In the following step, be extremely careful not to
trap or pinch any of the cables between the mounting screws
and their seats.
