Assembling the Exercise Bike 21
4. Remove the four #10 x 1-inch self-tapping screws holding
the left side cover in place, then pull the cover away from
the body assembly. Guide the cover around the pedal
crank, then remove it and set it aside.

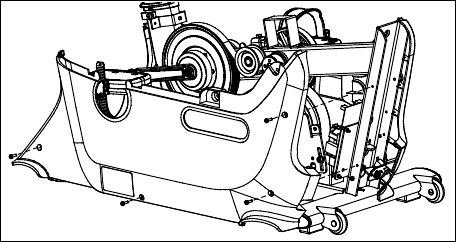

Figure 4: Side cover removal
5. Remove the tape holding the base unit data cable in place
inside the upright support channel.
6. Slide the jack panel up and out of its bracket in the right
side cover.
To install the upright support and prepare the cables for
connection to the console:
1. Remove the nut and washer from one end of the F-type
coaxial coupler packed with the P80 console. Insert that
end of the coupler through the round opening in the jack
panel.
2. Place the washer back onto the coaxial coupler, followed
by the nut. Use two ⁷₁₆-inch open-end wrenches to secure
the coupler; hold the coupler in place with one wrench
while tightening the nut with the second wrench.
3. Locate the tabbed end of the modular plug coupler. Snap
this end of the coupler into the square opening in the jack
panel.
4. Slide the quick-disconnect terminal on the grounding lead
of the power cable over the grounding terminal on the
equipment frame.
5. Attach the lower ends of the following cables to the inner
side of the jack panel:
Ethernet cable
Television cable (for P80 console)
Power cable (for P80 console)
6. Slide the jack panel back into its bracket in the right side
cover.
