38 Assembling and Maintaining UBK 800-Series Upright Exercise Bikes
5. Pull all cables upward and forward until you can drape
them over the top of the console’s back plate.

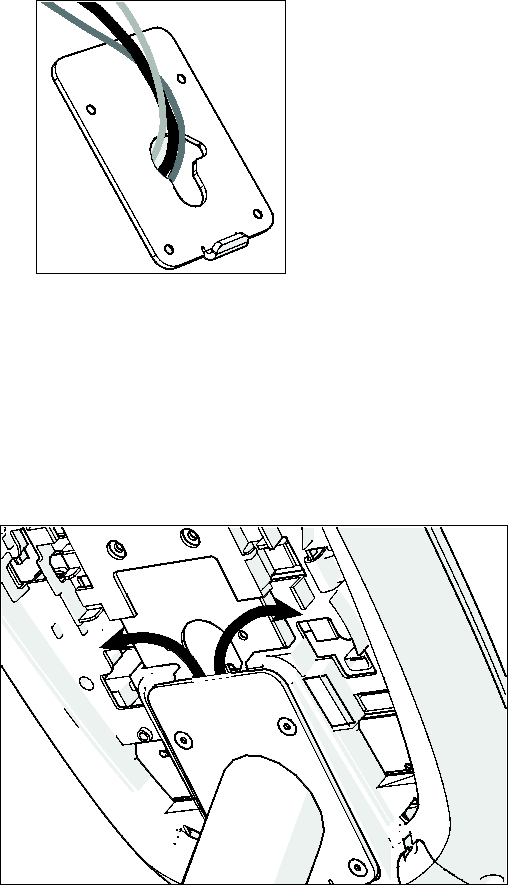

Figure 17: Cable positioning
Connecting Cables (P30 and P10)
Important: Pass all cables through the semicircular opening just
above the console mount, as shown in the following figure. Do not
attempt to route any cables through other openings or through the
steel channel above the mount.
Figure 18: Cable routing from the mount into the console
