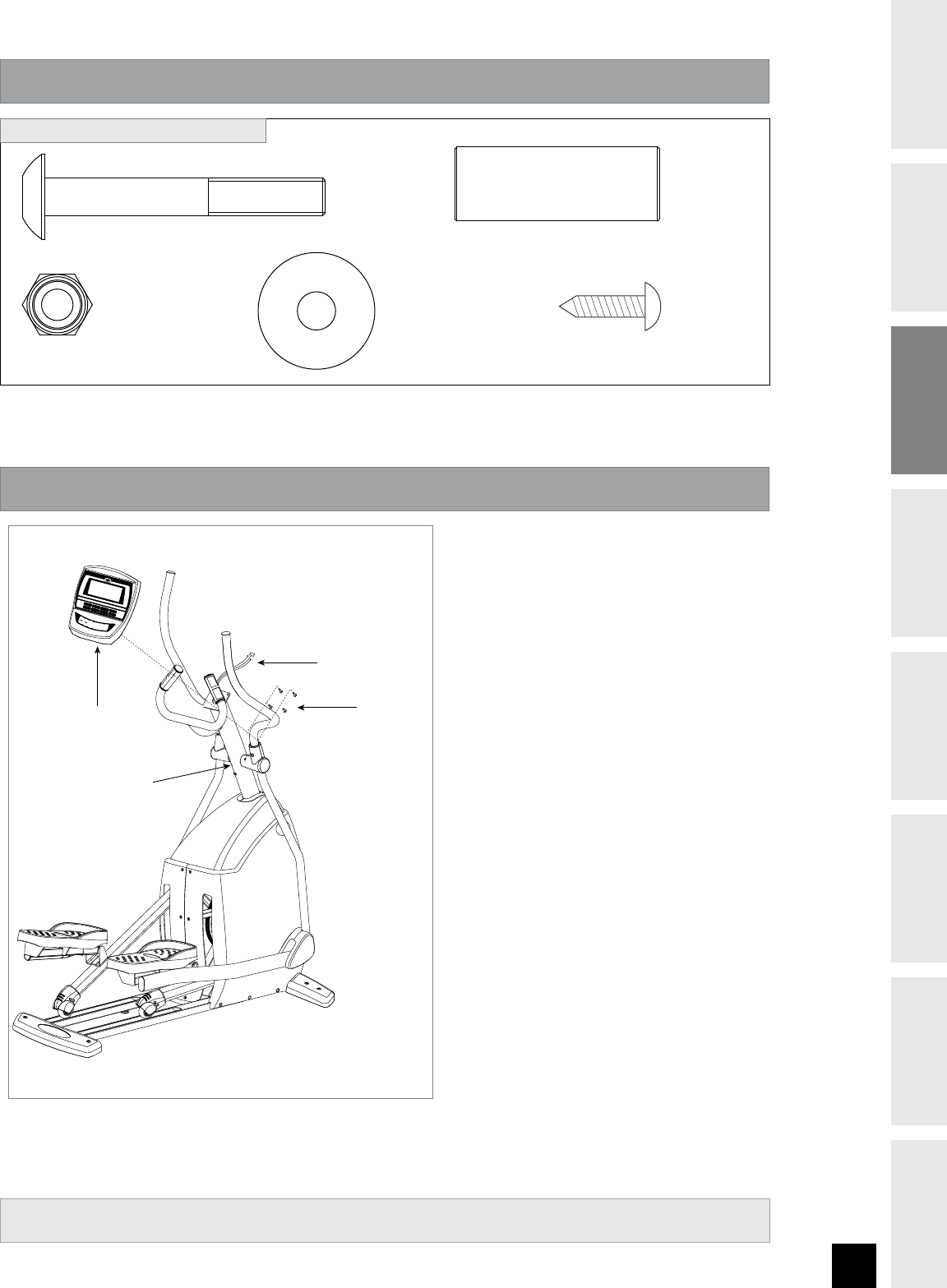

A S S E M B LY S T E P 6
NOTE: There is NO hardware bag for this step.
All hardware is pre-installed.
A) Attach the CONSOLE MAST wires to the
CONSOLE wires .
B) Carefully tuck the CONSOLE MAST wires
into the CONSOLE MAST before attaching
the CONSOLE.
C) Attach CONSOLE to the CONSOLE MAST
using the 4 PRE-ATTACHED SCREWS
(screws will have to be removed from the
console first).
DO NOT PINCH WIRES!
Y O U ’ R E F I N I S H E D !
NUT (J)
INSIDE DIAMETER:
8 mm
Qty: 2
BOLT (H)
60 mm
Qty: 2
SPACER (I)
44 mm
Qty: 2
TEFLON WASHER (E)
24 mm
Qty: 4
SCREW (F)
Qty: 2
HARDWARE BAG FOR STEP 5 CONTENTS :
START
/ STOP
MOD
E
P R O G
R A M S
E
NTER
CONSOLE
CONSOLE MAST
CONSOLE WIRES
PRE-ATTACHED
SCREWS
A S S E M B LY S T E P 5 (CONTINUED)
