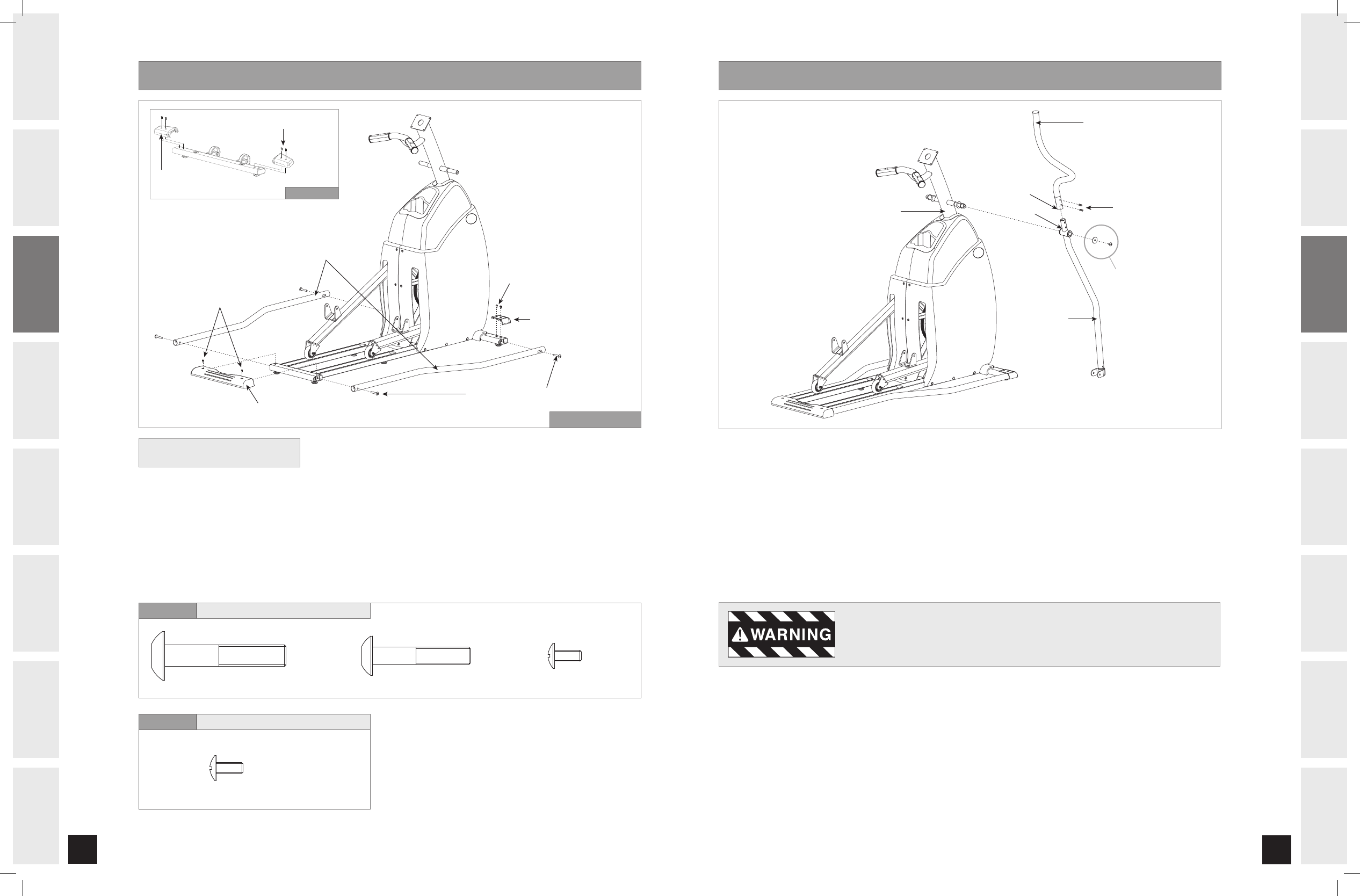

A S S E M B LY ST E P 4
$0/40-&."45
-08&3)"/%-&#"3
13&"55"$)&%
#0-58"4)&3
611&3)"/%-&#"3
13&"55"$)&%
4&54$3&84
/05$)
5"#
A S S E M B LY ST E P 3 (EX-65 & EX-75 ONLY)
NOTE: EX-55 SKIP THIS STEP
A) Open HARDWARE BAG FOR STEP 3.
B) EX-75 ONLY: Attach the PERIMETER BARS using 2 BOLTS (G) and 2 BOLTS (E).
C) EX-75 ONLY: Attach REAR STABILIZER COVER using 2 SCREWS (F).
D) Attach FRONT STABILIZER COVERS using 2 SCREWS (F) for each side.
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Remove PRE-ATTACHED BOLT & WASHERS from CONSOLE MAST.
B) Slide LOWER HANDLEBARS onto CONSOLE MAST and attach by re-inserting PRE-ATTACHED BOLT & WASHERS.
C) Slide UPPER HANDLEBARS onto LOWER HANDLEBARS and align NOTCH with TAB making sure handlebars are
joined together completely. Secure UPPER HANDLEBARS to LOWER HANDLEBARS using PRE-ATTACHED SET
SCREWS.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
REAR STABILIZER COVER
PERIMETER BARS
FRONT STABILIZER COVER
SCREWS (F)
SCREWS (F)
BOLTS (G)BOLTS (E)
SCREWS (F)
FRONT STABILIZER COVER
EX-65 ONLY
EX-75 ONLY
BOLT (E)
40 mm
Qty: 2
BOLT (G)
50 mm
Qty: 2
SCREW (F)
10 mm
Qty: 6
EX-75 ONLY HARDWARE BAG FOR STEP 3 CONTENTS :
SCREW (F)
10 mm
Qty: 4
EX-65 ONLY HARDWARE BAG FOR STEP 3 CONTENTS :
