BEFORE
YOU BEGIN
6
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
ELLIPTICAL
OPERATION
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN
ASSEMBLY
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
'30/545"#*-*;&356#&
#0-5"
8"4)&3#
8"4)&3$
."*/'3".&

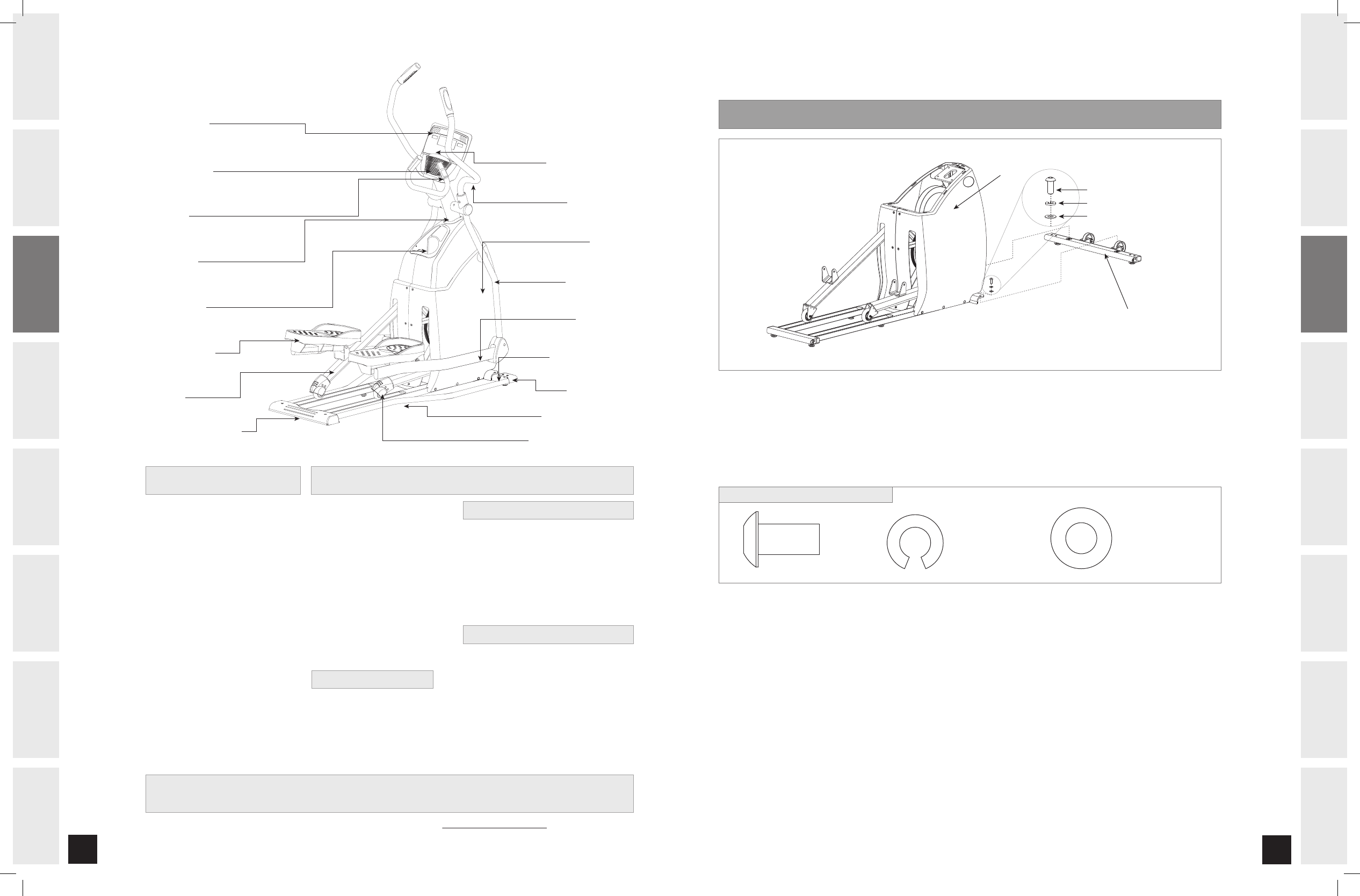

A S S E M B LY ST E P 1
A) Open HARDWARE BAG FOR STEP 1.
B) Attach the FRONT STABILIZER TUBE to the MAIN FRAME using 2 BOLTS (A), 2 WASHERS (B) and 2 WASHERS (C).
BOLT (A)
20 mm
Qty: 2
SPRING WASHER (B)
18 mm
Qty: 2
FLAT WASHER (C)
20 mm
Qty: 2
HARDWARE BAG FOR STEP 1 CONTENTS :
TOOLS INCLUDED PARTS INCLUDED
c 5mm Allen Wrench
c 6mm Allen Wrench
c Phillips Screw Driver
c 13/15mm Flat Wrench
c 1 Console
c 1 Console Mast
c 1 Front Stabilizer Tube
c 2 Upper Handlebars
c 2 Lower Handlebars
c 2 Lower Link Arms
c 2 Pivoting Foot Pads
c 2 Elbow Covers
c 2 Handlebar Covers
SPEAKERS (EX-75)
CONSOLE (EX-75 SHOWN)
UPPER HANDLEBAR
MAIN FRAME
LOWER HANDLEBAR
LOWER LINK ARM
FRONT STABILIZER TUBE
PERIMETER BARS (EX-75)
FAN (EX-65, EX-75)
GRIP PULSE
CONSOLE MAST
ACCESSORY TRAY
PIVOTING FOOT PAD
PEDAL ARM
c 6 Hardware Bags
c 2 Front Stabilizer Covers
c 2 Top Side Covers
c 1 Accessory Tray
c 1 Horizon Fitness, 12-Volt Power Supply
c 2 Perimeter Bars
c 6 Hardware Bags
c 3 Stabilizer Covers
c 2 Top Side Covers
c 1 Accessory Tray
c 1 Horizon Fitness, 12-Volt Power Supply
EX-65:
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
STABILIZER COVER (EX-75)
STABILIZER COVER
WHEEL COVER (EX-65, EX-75)
EX-75:
EX-55:
c 5 Hardware Bags
c 2-piece Top Cap
c 1 Horizon Fitness
6-Volt Power Supply
For a complete exploded diagram, visit us at www.horizonfitness.com
