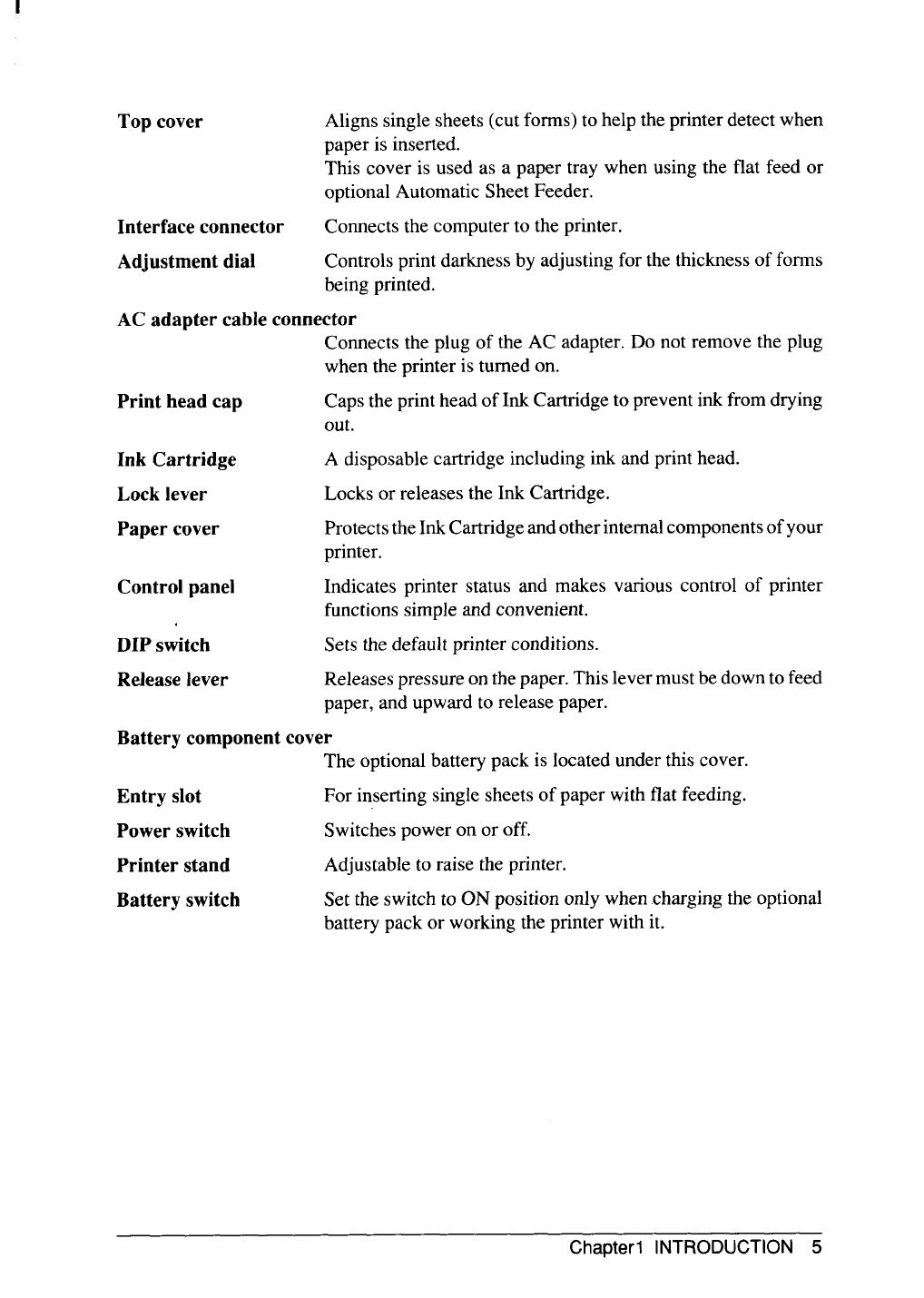

Top cover Aligns single sheets (cut forms) to help the printer detect when
paper is inserted.
This cover is used as a paper tray when using the flat feed or
optional Automatic Sheet Feeder.
Interface connector
Connects the computer to the printer.
Adjustment dial
Controls print darkness by adjusting for the thickness of forms
being printed.
AC adapter cable connector
Connects the plug of the AC adapter. Do not remove the plug
when the printer is turned on.
Print head cap
Caps the print head of Ink Cartridge to prevent ink from drying
out.
Ink Cartridge
A disposable cartridge including ink and print head.
Lock lever Locks or releases the Ink Cartridge.
Paper cover Protects the Ink Cartridge and otherinternalcomponents of your
printer.
Control panel Indicates printer status and makes various control of printer
functions simple and convenient.
DIP switch
Sets the default printer conditions.
Release lever Releases pressure on the paper. This lever must be down to feed
paper, and upward to release paper.
Battery component cover
The optional battery pack is located under this cover.
Entry slot For inserting single sheets of paper with flat feeding.
Power switch
Switches power on or off.
Printer stand Adjustable to raise the printer.
Battery switch
Set the switch to ON position only when charging the optional
battery pack or working the printer with it.
Chapterl INTRODUCTION 5
