Additional Information

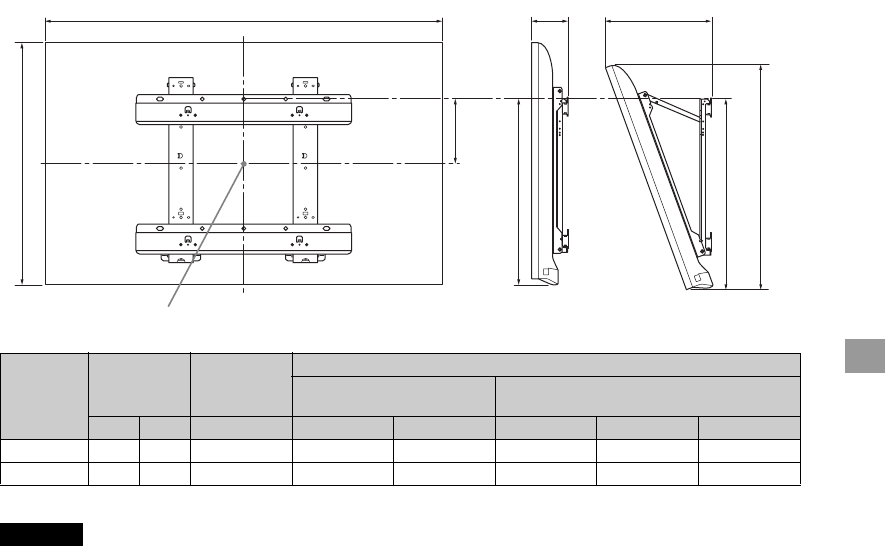

TV installation dimensions table
Unit: cm
Figures in the table may differ slightly depending on the installation.
The wall that the TV will be installed should be capable of supporting a weight of at least four times that of the
TV. Refer to “Specifications” (page 25-26) for its weight.
1 SU-WL500
Model
Name
KDL-
Display
dimensions
Screen
centre
dimension
Length for each mounting angle
Angle (0°) Angle (20°)
A B C D E F G H
40EX725
94.3 58.6 15.7 46.5 9.1 26.1 54.6 47.2
32EX725
75.5 48.0 16.1 41.6 9.1 24.1 44.6 42.7
WARNING
A
B
C
D
E
F
G
H
Screen centre point
