Hookups
Hooking Up the Player
Follow Steps 1 to 4 to hook up and adjust the settings of the player.
Before you start, disconnect the power cords (mains leads), check that you have all of the
supplied accessories, and insert the batteries into the remote (page 15).
Notes
Plug cords securely to prevent unwanted noise.
Refer to the instructions supplied with the components to be connected.

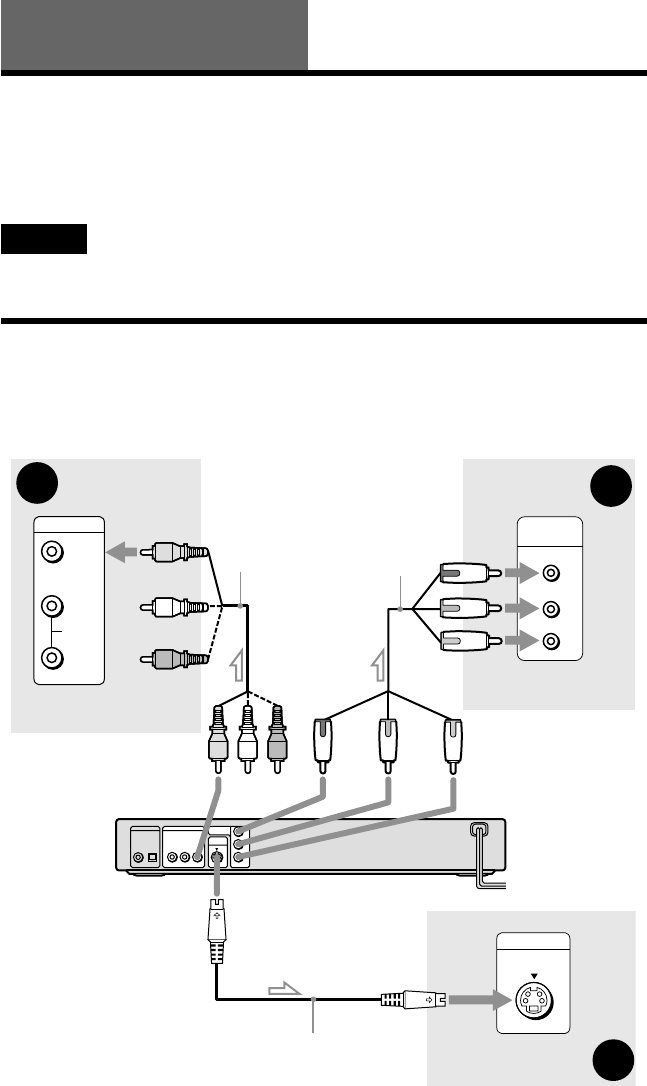

Step 1: Connecting the Video Cords
Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video
cord. Select one of the patterns A through C, according to the input jack on your TV
monitor, projector, or AV amplifier (receiver).
B
A
C
INPUT
S VIDEO
C
R
C
B
Y
COMPONENT
VIDEO IN
VIDEO
AUDIO
INPUT
L
R
PCM/DTS/MPEG/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL
R-AUDIO-L VIDEO
DIGITAL OUT LINE OUT
C
R
C
B
Y
OPTICAL
(yellow)
Audio/video cord
(supplied)
Component
video cord
(not supplied)
TV, projector, or AV
amplifier (receiver)
TV, projector, or AV
amplifier (receiver)
(yellow)
(green)
(blue) (red)
(green)
(blue)
(red)
TV, projector, or AV
amplifier (receiver)
to S VIDEO OUT
to LINE OUT (VIDEO)
to COMPONENT
VIDEO OUT
S VIDEO cord
(not supplied)
CD/DVD player
l : Signal flow
