Class 8839 58M Enclosed AC Drives

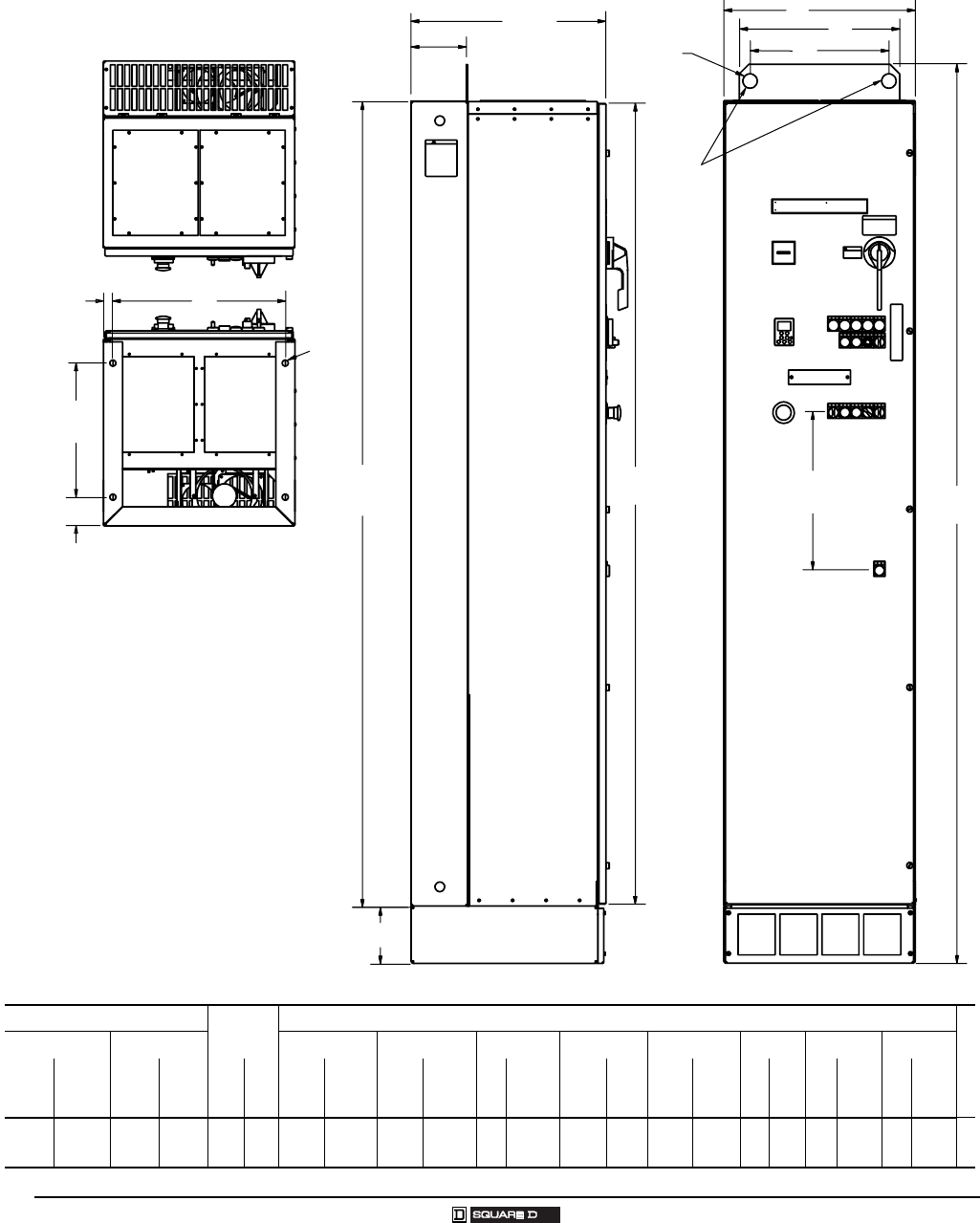

Dimensions and Weights for Mounting
164
09/2003
© 2000–2003 Schneider Electric All Rights Reserved
Class 8839 58M Enclosed Drives: 25–75 hp CT Controllers and 30–100 hp VT Controllers @ 460
V and 15–40 hp CT Controllers and 15–50 hp VT Controllers @ 208/230 V
A
B
Ø1.50
(38.1)
Ø0.625
(15.875)
Lifting Holes
20.38
(517.7)
5.90
(149.9)
1.00
(25.4)
D
E
F
G
H
C
Conduit Entry - Top View
Conduit Entry - Bottom View
16.00
(406.4)
14.00
(355.6)
3.00
(76.2)
OTE: Remove plenum fan filter, front grill,
nd retaining bracket assembly to access
he mounting hole locations.
OTE: Provide at least 36 in. of mounting
learance in front of the drive controller and
t least 24 in. of mounting clearance at the
op of the drive controller. Floor-mounted
nits may be mounted side by side without
learance.
OTE: Remove the top or bottom conduit
lates as necessary to facilitate the
ppropriate conduit entry. Ensure that the
lates are replaced before working on the
rive controller.
hp Weight Enclosure Dimensions
Enclosure Size
460 V 208/230 V A B C D E F G H
CT VT CT VT lb kg in. mm in. mm in. mm in. mm in. mm in.
mm
in. mm in. mm
25–40 30–50 15–20 15–25 378 171 83.38 2117.9 93.87 2384.3 84 2133.6
16.75 425.5
14.50 368.3 20 508 8.0 203.2 18 457.2 E
50–75 60–100 25–40 30–50 562 254 83.38 2117.9 93.87 2384.3 84 2133.6 23 584 19.00 482.6 25 635 8.0 203.2 23 584.2 F
Size E-F dimensions.eps
