Membrane Filter Elements
34 Operating Manual Status: 06/2001/01
Internal inflation system
Through the internal inflation/squeezing connection, the squeeze medium is introduced into
the entire plate pack.
The squeeze medium flows from this collective connection into the membrane filter
elements.
A seal is located between each of the filter elements. The seals are dimensioned so that
the thickness of the filter cloth is bridged. Please see the instructions for dimensioning the
filter cloth cut-outs in Section 5.1 "Installing the filter cloths".

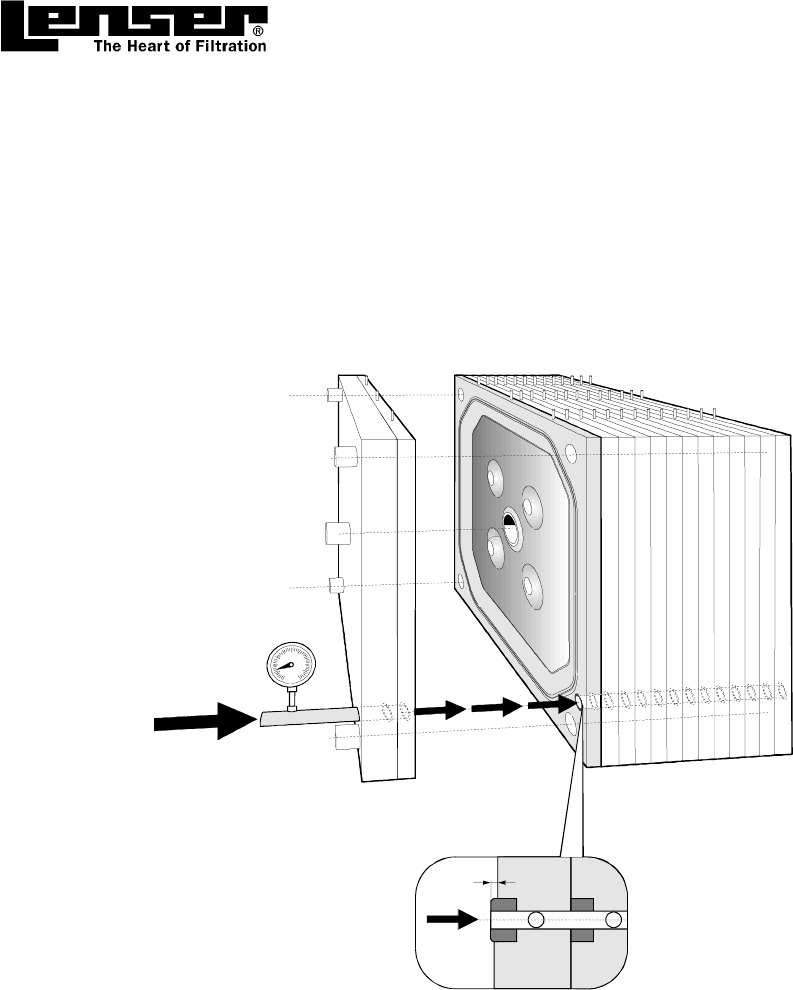

Figure 6-4 Collective internal inflation/squeezing system (collective canal with internal
inflations ports)
