Membrane Filter Elements

Status: 06/2001/01 Operating Manual 13

Basic installation sequence

1. The connection plate and the head filter element are installed at the fixed end of the

filter press.

2. The tail (end) filter element is installed in front of the movable pressure piece of the

filter press.

3. The pressure and wash filter elements are installed alternately so that the fluid routing

necessary for the filtration and washing processes is possible.

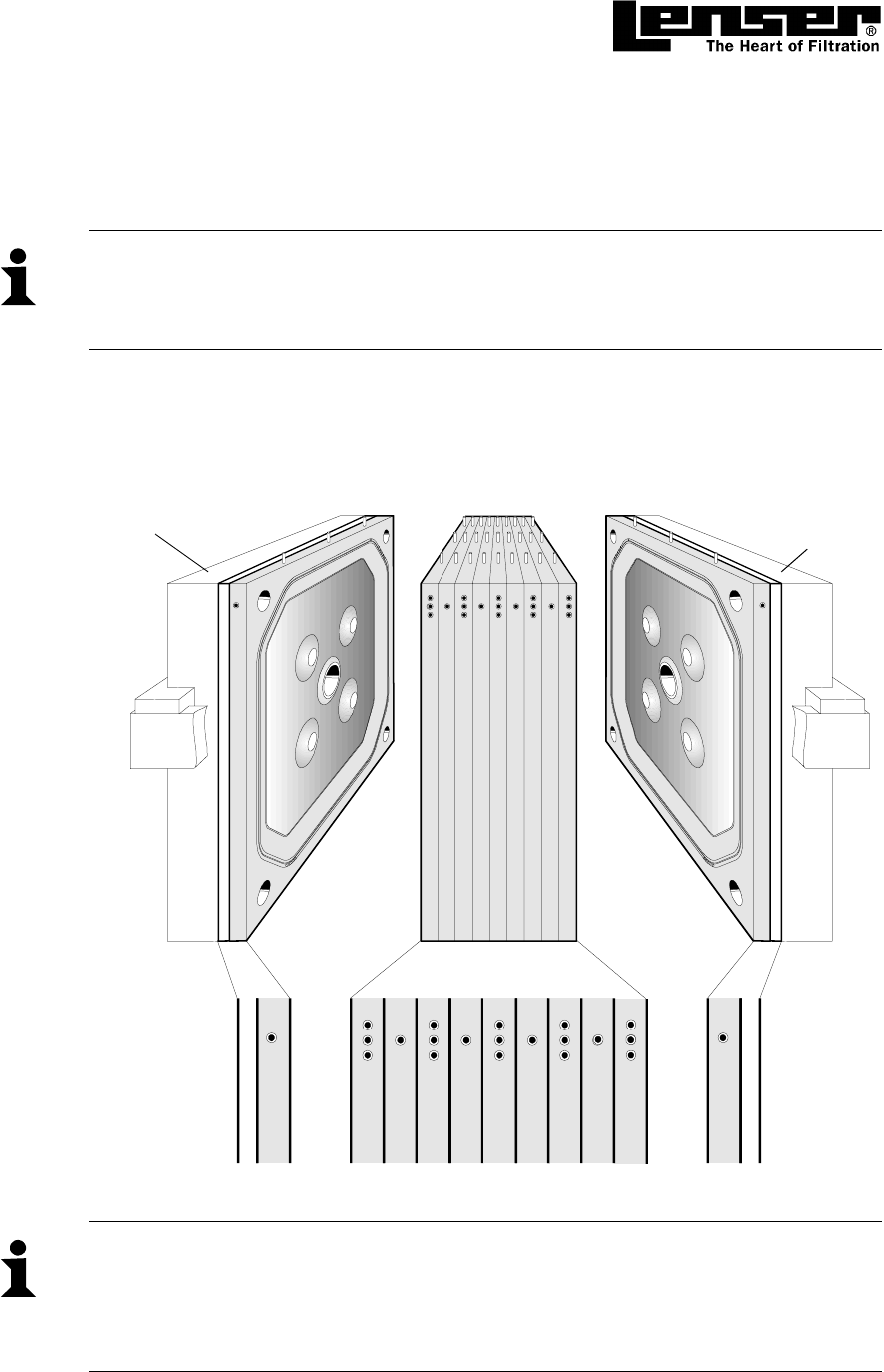

Figure 5-1 Installation sequence of pressure and wash plates

Information

Whether the head filter element is loose, i.e. movable, or fixed to the head piece/

connection plate of the filter press frame depends on the design of the respective filter

press.

Information

Filter presses can generally be fitted with membrane filter elements or optionally in

combination (alternately) with recessed filter elements or filter plates. The filter elements

must be designed accordingly.

You should therefore only use combinations authorised by LENSER.

Fixed head piece

Movable pressure/

of the filter press

end piece of the

filter press
