3
Image display area
Each time you press the Capture button an index image is captured into the image area.
Up to 99 images can be captured, with up to five images in one horizontal frame. Index
images are provided to allow you to confirm that you have captured the images you want.
Index image data: 80 x 60 pixels Full image data: 768 x 552 pixels
Hatched like this
when counter
time is corrected
(੬ p. 33)
Index numbers are
automatically assigned
Counter display
Indicates the current tape position
eg. 00 : 02 : 17 : 21
Hour
:
Min
:
Sec
:
Frame
Colours of counter numerals
Black : Full image data transferred
White: Full image data not
transferred (only index
image data transferred)
When an image display box is double-clicked
Full image data will appear if it has already been transferred.
Displays the full image (Index No.02)
Save Image AS...
Close
Ctrl+A
Ctrl+X
File

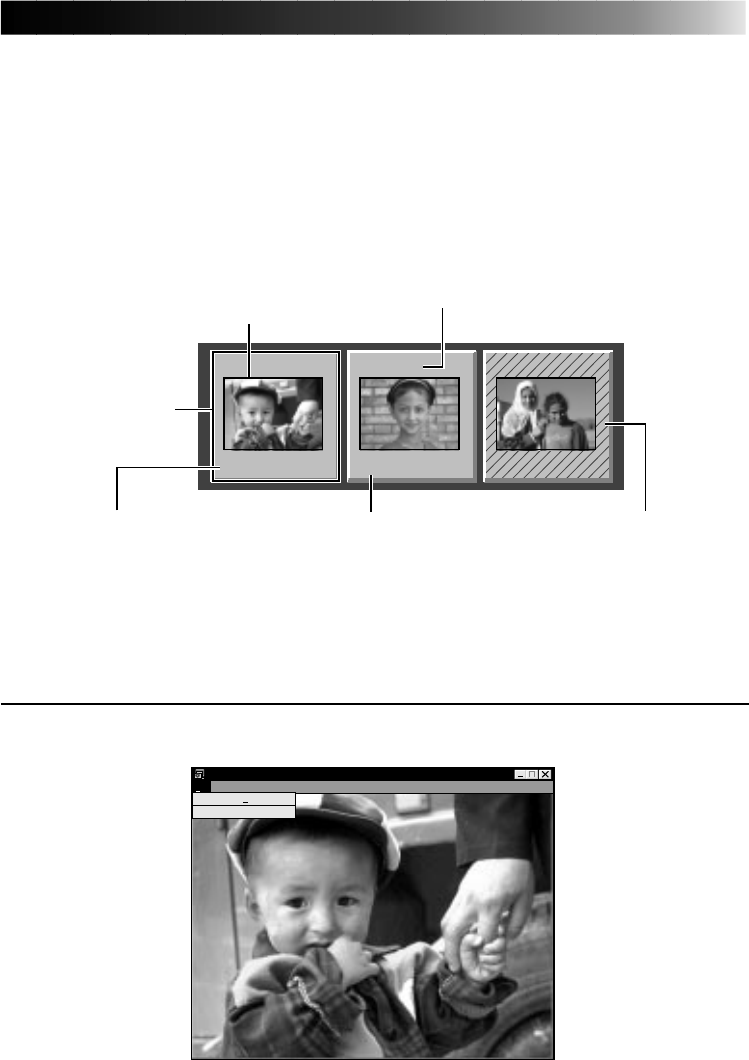

Index image
Click to select an index image, and
•the border of the Image display
box turns green
•Double-click an index image, and
Full image data will appear if it
has already been transferred
Image display box
