ADF assembly
1. Remove the scanner rear cover. See Scanner rear cover on page 76.
2. Remove one screw (callout 1) from the metal cable-retaining bracket, and then remove the bracket.
1

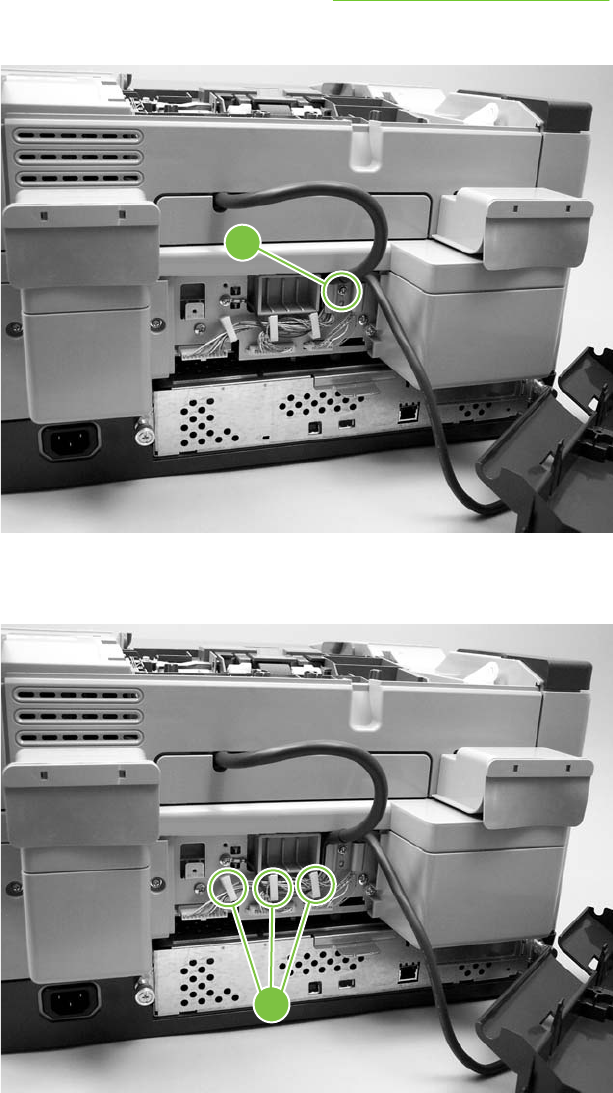

Figure 5-57 Removing the ADF assembly (1 of 3)
3. Unclip three wire clips (callout 2) and release the wires.
2
Figure 5-58 Removing the ADF assembly (2 of 3)
