Control-panel cover assembly
1. Remove the control panel. See Control panel on page 47.

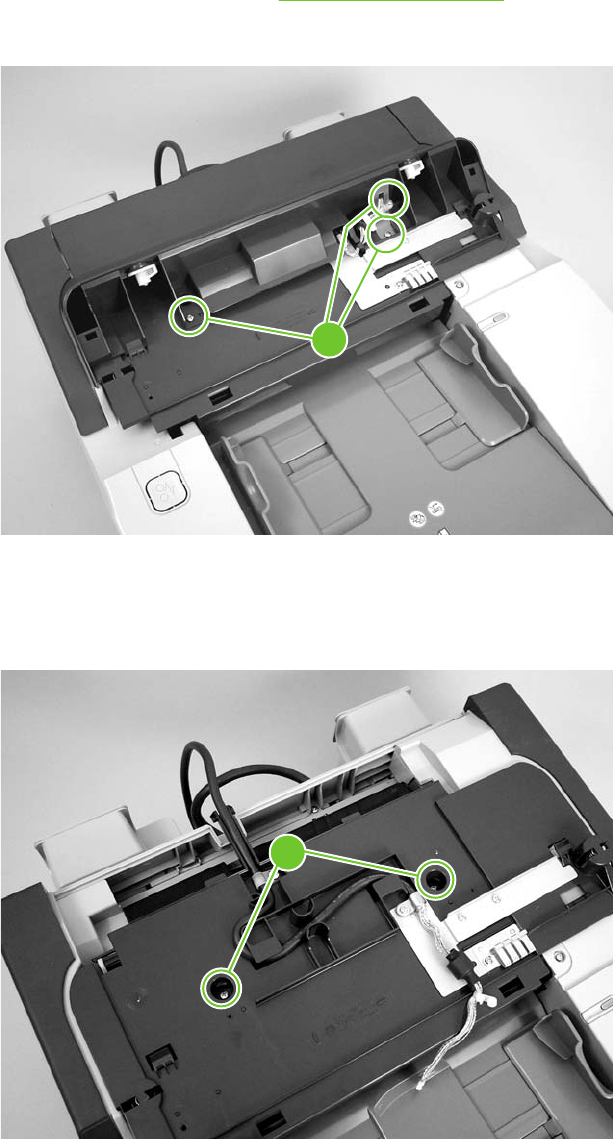

2. Remove three screws (callout 1).
1
Figure 5-32 Removing the control-panel cover assembly (1 of 6)
3. Slide the rear control-panel cover past the latches and remove the cover.
4. Remove two screws (callout 2).
2
Figure 5-33 Removing the control-panel cover assembly (2 of 6)
60 Chapter 5 Removal and replacement ENWW
