Removal and Installation

8-67

HP DesignJets 1050C and 1055CM Printers Service Manual

4. Remove the four T-15 screws (item 1) securing the left hand

electronic module mount (item 2) to the left hand side chassis (refer

to Figure 73).

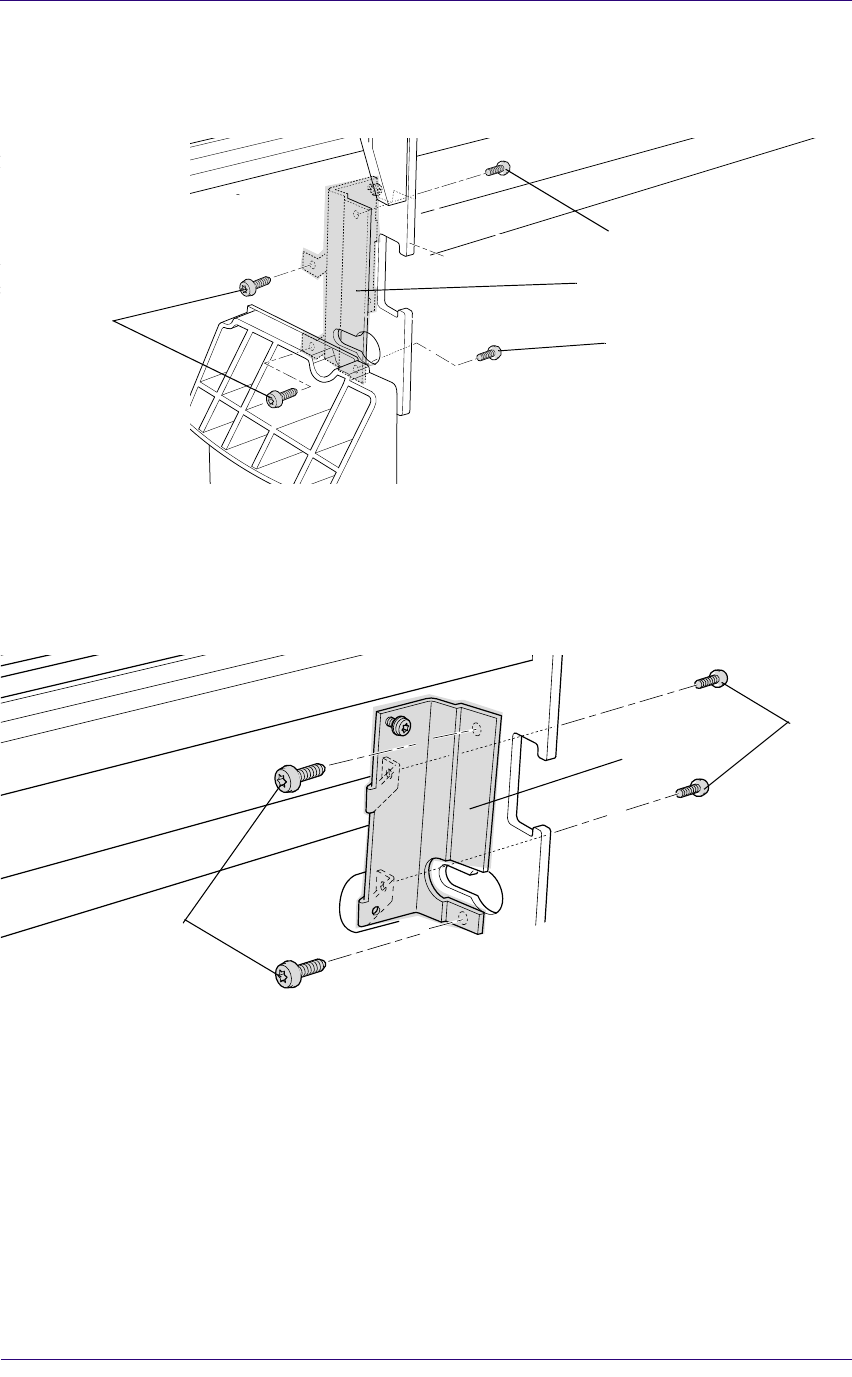

Figure 73: Left Electronic Module Mount

5. Remove the four T-15 screws (item 1) securing the right hand

electronic module mount (item 2) to the right hand side chassis

(refer to Figure 74).

Figure 74: Right Electronic Module Mount

2

1

1

1

1

1

2
