Removal and Installation
8-49
HP DesignJets 1050C and 1055CM Printers Service Manual
NOTE For steps 13 to 15, refer to Figure 47.
13. Remove the tensioner pulley (item 1) from the belt (item 2) which is
located in the tensioner assembly (item 3).
14. Remove the two T-15 screws (item 4) securing the tensioner
assembly to the slider rods (item 5).
15. Remove the tensioner assembly (item 3).

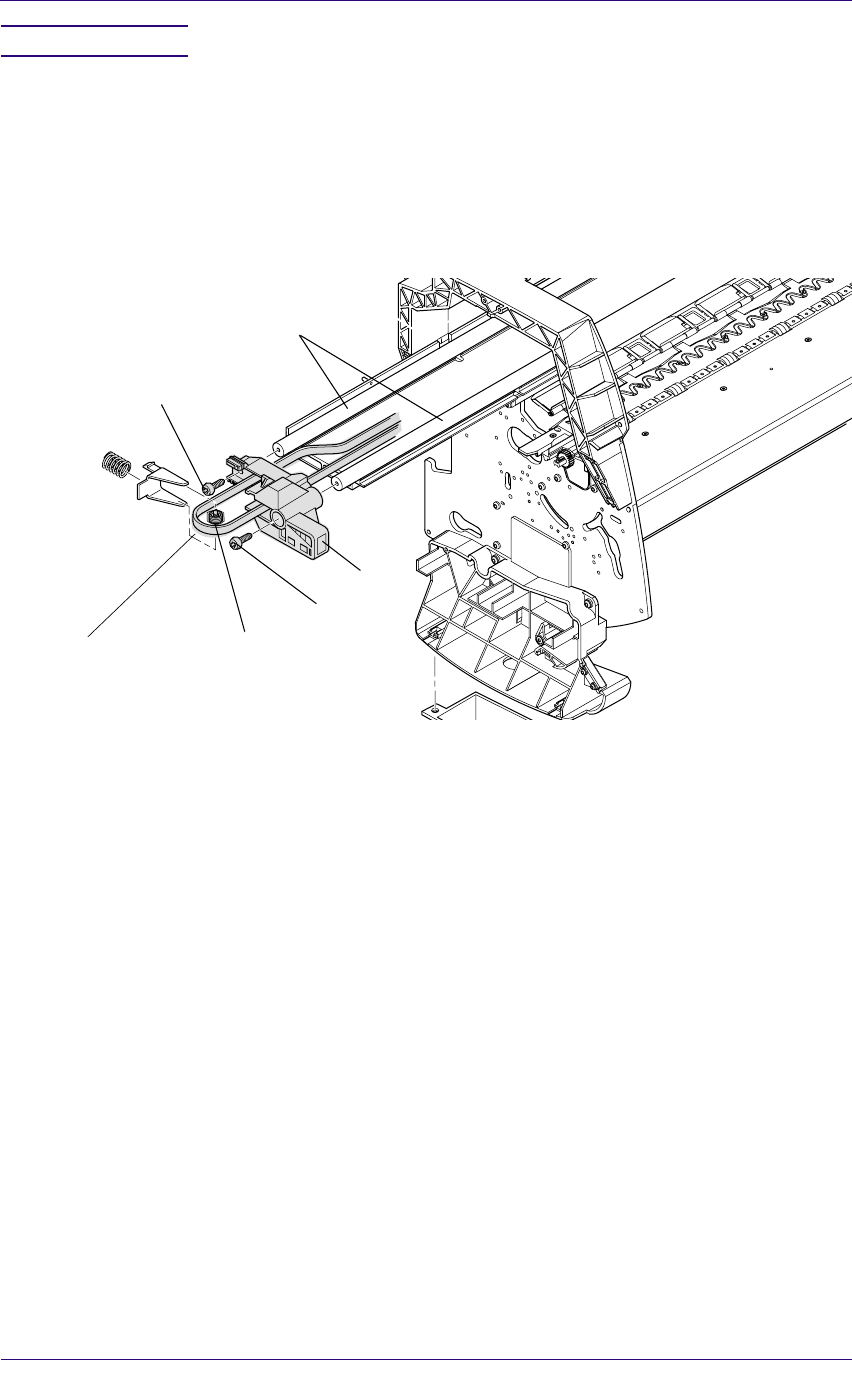

Figure 47: Carriage Assembly and Belt
1
2
3
4
5
4
