34
How to deploy the Dell M8024 family of switches in a Cisco Nexus network

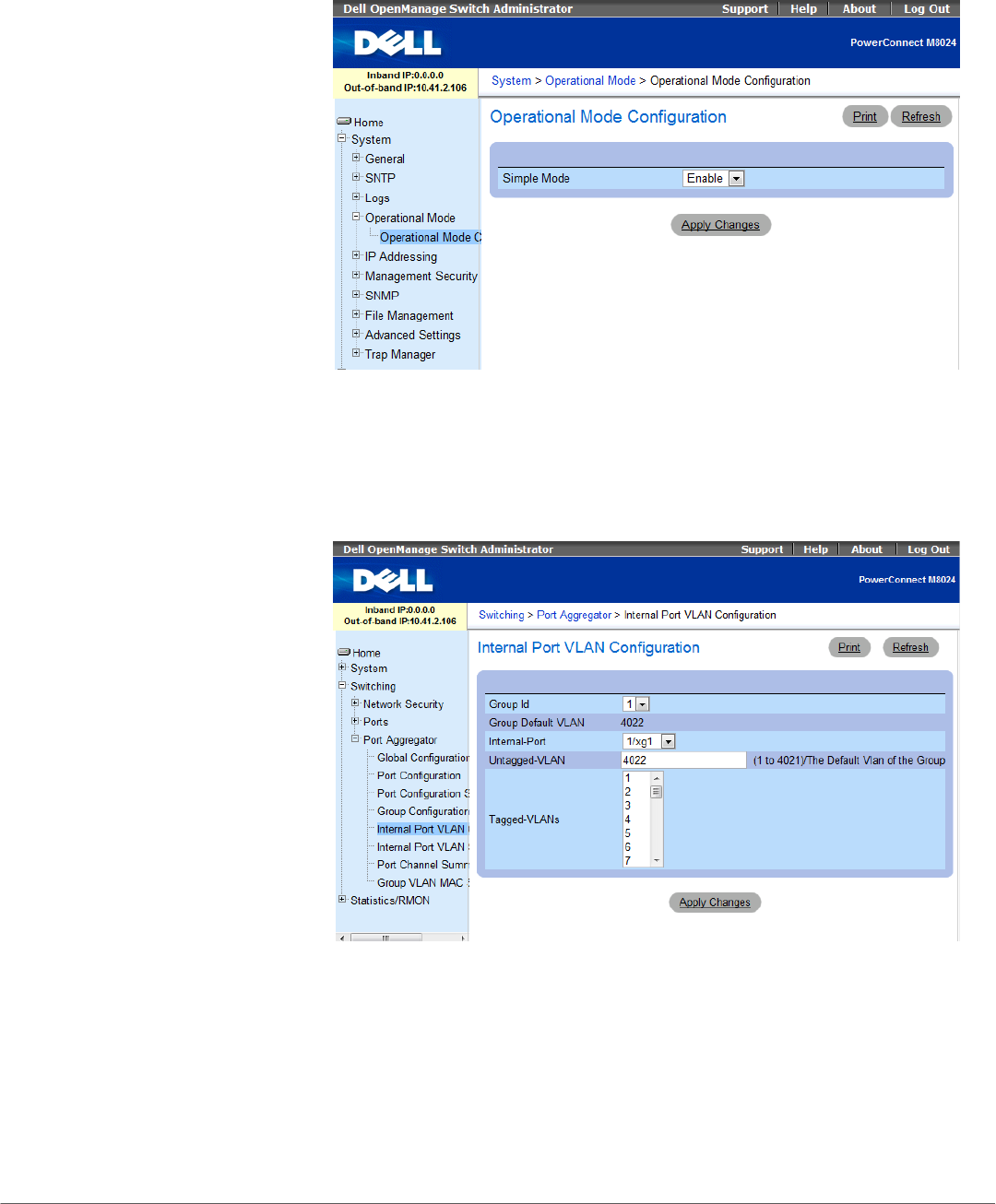

Figure 44: Simple Mode configuration on the Dell PowerConnect M8024 switch.
4. Select SwitchingÆPort AggregatorÆInternal Port VLAN
Configuration.
5. In the Internal-Port drop-down menu, select a port (we chose
1/xg1). (See Figure 45.)
Figure 45: Internal Port VLAN Configuration on the Dell PowerConnect M8024
switch.
6. In the Untagged-VLAN textbox, write a VLAN (we chose 101), and
left-click Apply Changes (see Figure 46).
