How to deploy the Dell M8024 family of switches in a Cisco Nexus network

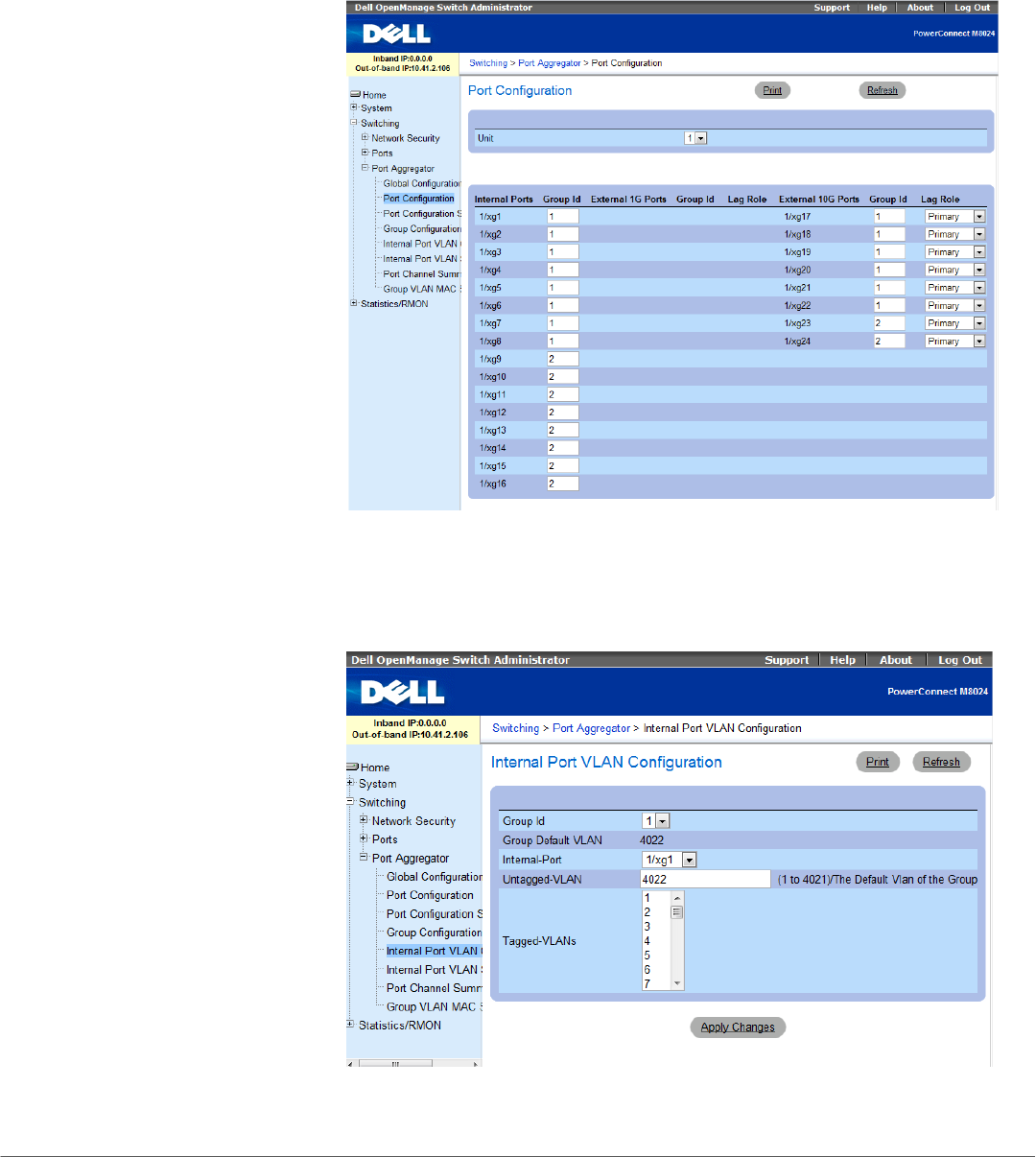

6. In the Port Configuration screen, change the Group ID of the
external ports (we changed ports 23 and 24 to Group 2), and click
Apply Changes (see Figure 30).
Figure 30: Assigning Group 2 to external ports on the Dell PowerConnect M8024
switch.
7. Select SwitchingÆPort AggregatorÆInternal Port VLAN
Configuration (see Figure 31).
Figure 31: Internal Port VLAN Configuration on the Dell PowerConnect M8024
switch.
