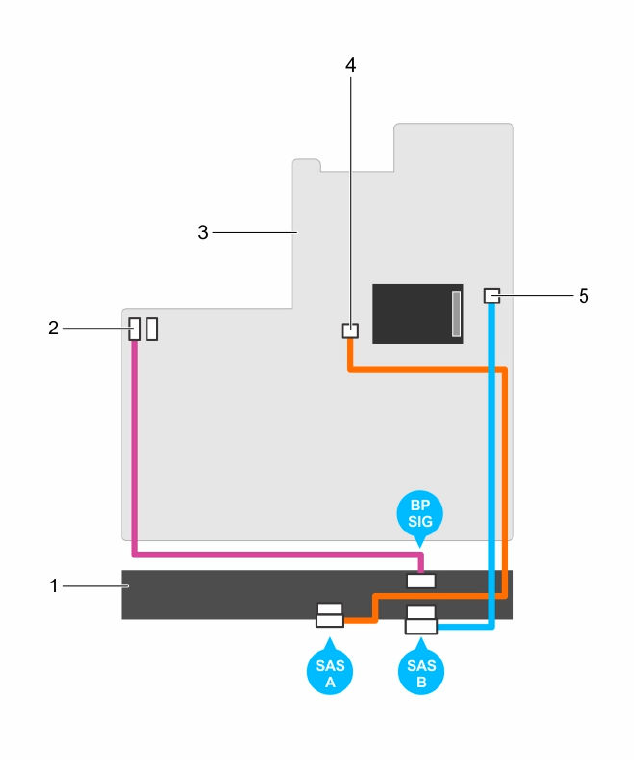

Figure 63. Cabling diagram—2.5 inch (x8) SAS/SATA backplane (option 2)
1. hard drive backplane 2. backplane signal connector 1
3. system board 4. SAS A connector on the system board
5. SAS B connector on the system board
