The SmartSwitch 7000 Chassis View
2-14 Viewing Chassis Information
Device Type
Choosing the Device Type option on the Device menu brings up a window that
describes the management device being modeled:

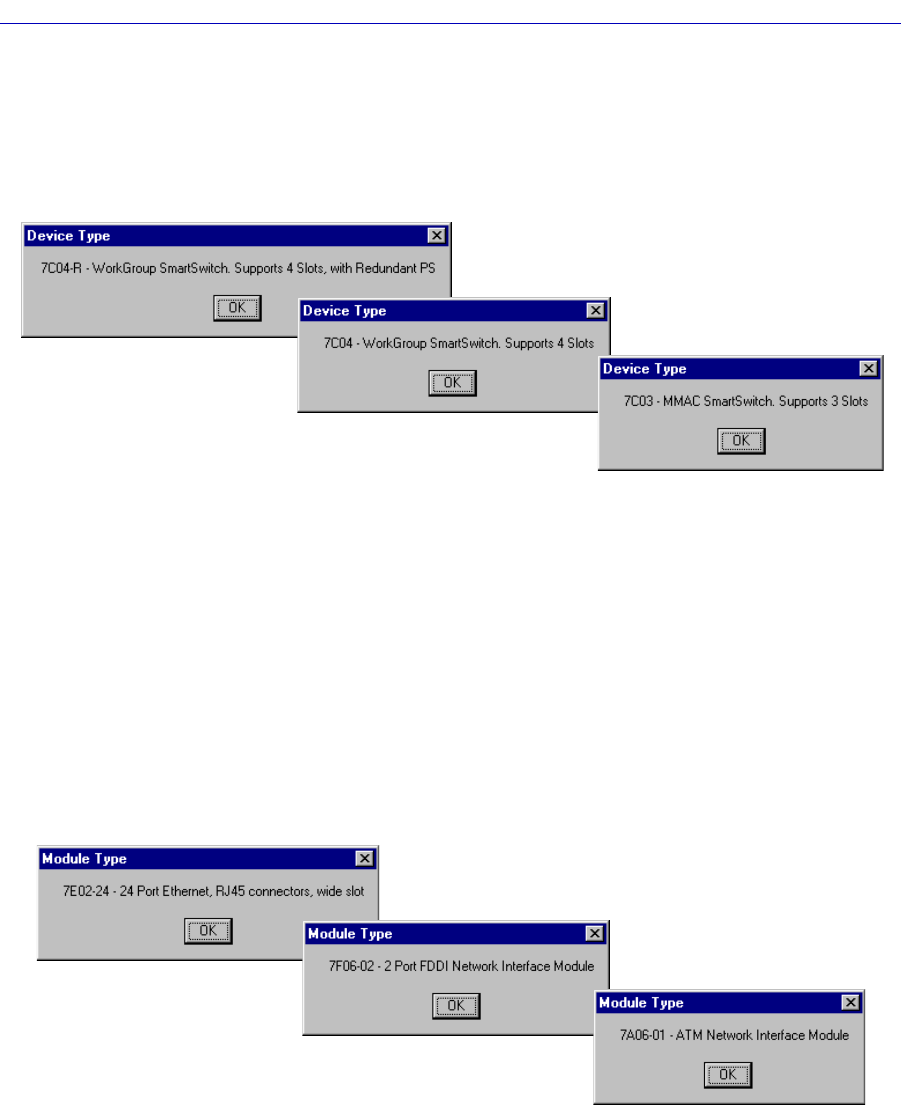

Figure 2-5. Device Type Windows
Module Type
From the Board menus on the SmartSwitch 7000 Chassis View window, you can
view a description of the Module types installed in your SmartSwitch chassis.
To view a Module type:
1. Click on the desired Board number. The Board menu will appear.
2. Drag down to Module Type.... A Module Type text box (similar to the
examples shown in Figure 2-6) will appear, describing the board type.
Figure 2-6. Sample Module Type Text Boxes
