3-49
Table 3-41 CoS to Queue Setup Page item description
Item Description
Restore Defaults
Restores the switch factory defaults for mapping CoS values to forwarding
queues.
Class of Service
Specifies the CoS priority tag values, where 0 is the lowest and 7 is the
highest.
Queue Defines the traffic forwarding queue to which the CoS priority is mapped.
Viewing CoS to Queue
The CoS to Queue Summary Page contains a table that displays the CoS values mapped to traffic
queues.
Click Device > QoS > CoS to Queue. The CoS to Queue Summary Page opens.

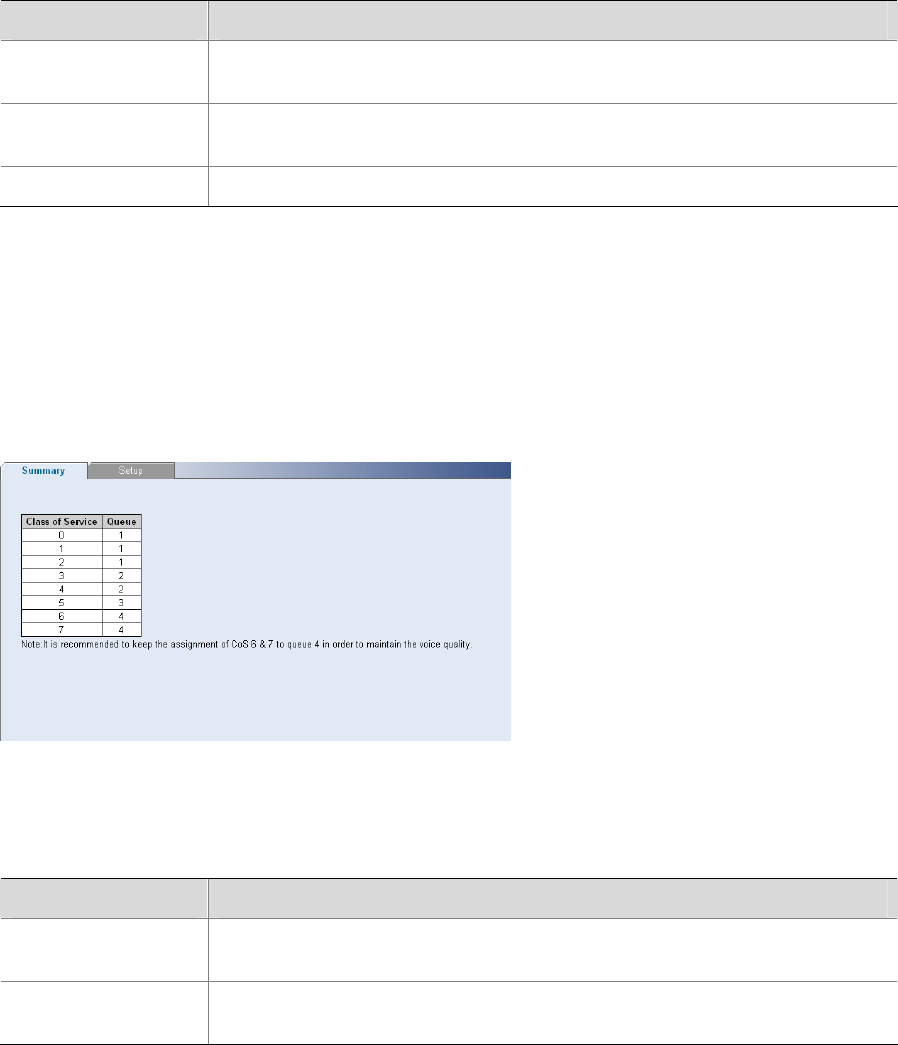

Figure 3-53 CoS to Queue Summary Page
The CoS to Queue Summary Page contains the following fields:
Table 3-42 CoS to Queue Summary Page item description
Item Description
Class of Service
Displays the CoS priority tag values, where 0 is the lowest and 7 is the
highest.
Queue
Indicates the traffic forwarding queue to which the CoS priority is mapped.
Four traffic priority queues are supported.
Configuring DSCP to Queue
Defining DSCP to Queue
The DSCP to CoS Setup Page contains fields for mapping DSCP settings to CoS priority tag values. For
example, In default, a packet with a DSCP tag value of 3 can be assigned to queue 1.
Click Device > QoS > DSCP to Queue > Setup. The DSCP to Queue Setup Page opens.
