6

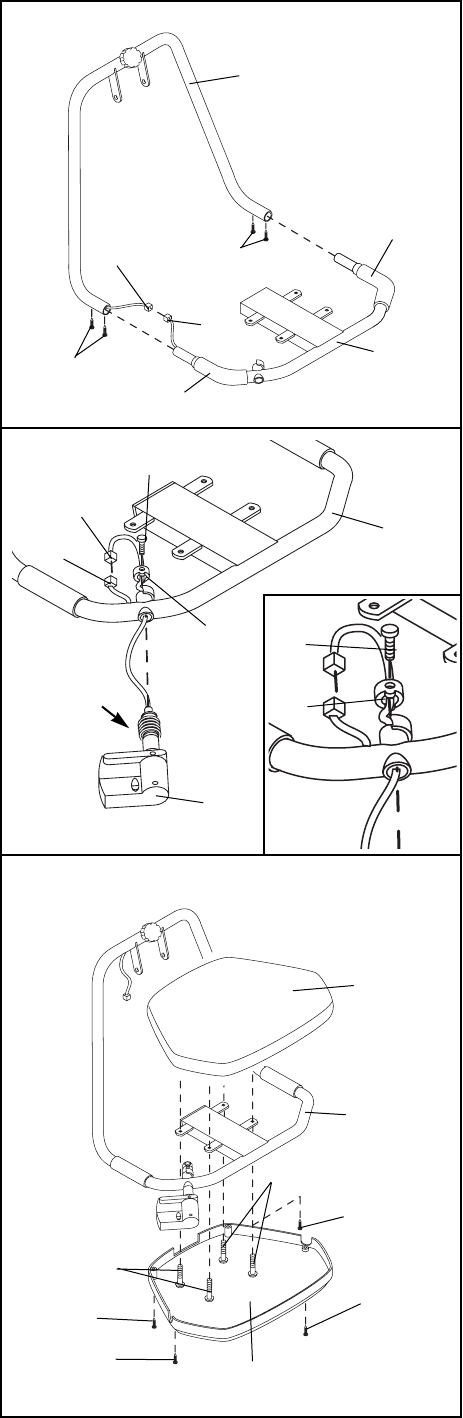

6. Attach the Seat (43) to the indicated brackets on the
Seat Bar (6) with four M6 x 16mm Seat Screws (28).
Attach the Seat Cover (35) to the Seat (43), using two
M4 x 38mm Screws (4) along the rear edge and an M4
x 16mm Tapping Screw (30) on each side.
5. Remove the Console Mount Screw (69) and slide the
Detent Ring (73) off the shaft of the Console (5).
Insert the console wire through the indicated hole in
the Seat Bar (6).
Using the included grease pack, lubricate the shaft of
the Console (5). Insert the shaft into the indicated hole
in the Seat Bar (6).
Slide the Detent Ring (73) onto the console shaft and
line up the hole in the Detent Ring with the hole in the
shaft. Secure the Console (5) with the Console Mount
Screw (69) (see the inset drawing).
Plug the console wire into the Seat Bar Wire (16).
5
88
Console
Wire
5
6
69
Lubricate
73
4. Connect the Seat Bar Wire (88) to the Handlebar Wire
(87).
Slide the Handlebar (7) onto the Seat Bar (6). Attach
the Handlebar with the four Handlebar Screws (51).
Make sure that the Handlebar Screws do not damage
the wires.
Pull both Grips (72) towards the Handlebar (7) until
they cover the Handlebar Screws (51).
30
30
4
28
28
35
6
43
4
4
51
88
6
7
51
72
72
87
6
69
73
