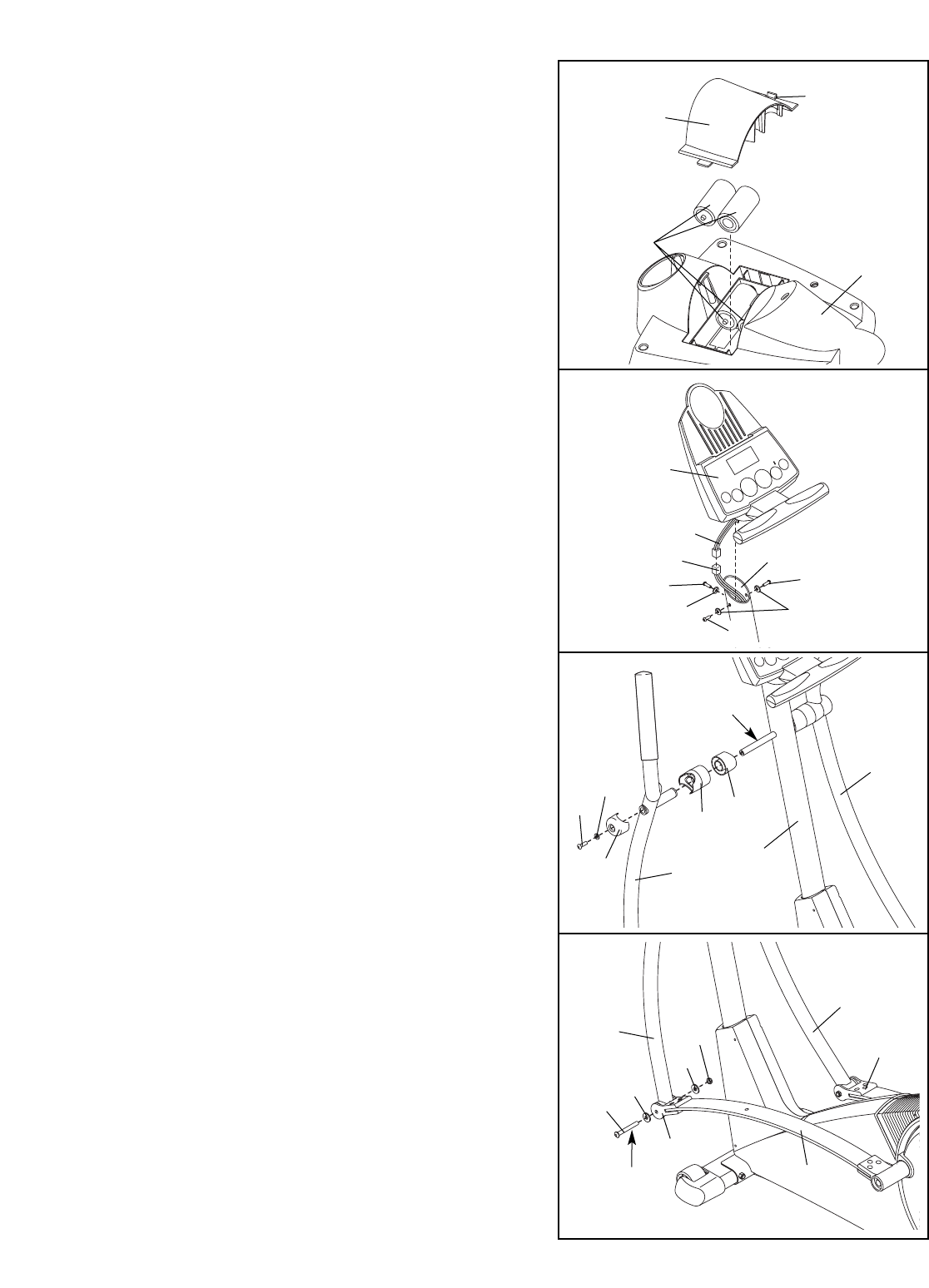

8. Hold the lower end of the Left Handlebar (9) inside of
the Front Flex Bracket (17) on the left Flex Bar (14).
Apply grease to an M10 x 78mm Button Bolt (27).
Attach the Left Handlebar (9) to the Front Flex Bracket
(17) with the Button Bolt, two M10 Zinc Washers (38),
and an M10 Zinc Nylon Locknut (88). Do not over-
tighten the Nylon Locknut; the Left Handlebar must
be able to pivot freely.
Attach the Right Handlebar (10) to the right Front Flex
Bracket (17) in the same way.
17
17
14
27
38
38
88
Grease
7
6. While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness into the Upright (2).
Attach the Console (5) to the Upright (2) with three
M10 x 27mm Screws (71) and three M10 Split
Washers (70). Be careful to avoid pinching the wire
harnesses.
6
5
86
71
71
7. Apply a small amount of the included grease to the left
and right axles on the Upright (2).
Identify the Left Handlebar (9) (refer to the drawing on
page 4, if necessary). Carefully slide an Upright Spacer
(26), a Handlebar Spacer (25), the Left Handlebar, and a
Handlebar Cap (23) onto the left axle on the Upright (2)
as shown. Slide an M10.3 Black Washer (53) onto an M8
x 19mm Button Screw (22), and tighten the Button Screw
into the axle.
Attach the Right Handlebar (10) in the same way.
Grease
7
8
2
Wire Harness
70
70
71
26
25
9
2
10
23
53
22
9
10
5. The Console (5) requires four “D” batteries (not includ-
ed); alkaline batteries are recommended. Press the tab
on the battery cover, and lift off the battery cover.
Insert four batteries into the battery compartment.
Make sure that the batteries are oriented as shown
by the diagram inside the battery compartment.
Reattach the battery cover.
5
5
Tab
Batteries
Battery
Cover
