ProForm 700 Home Gym User Manual



6

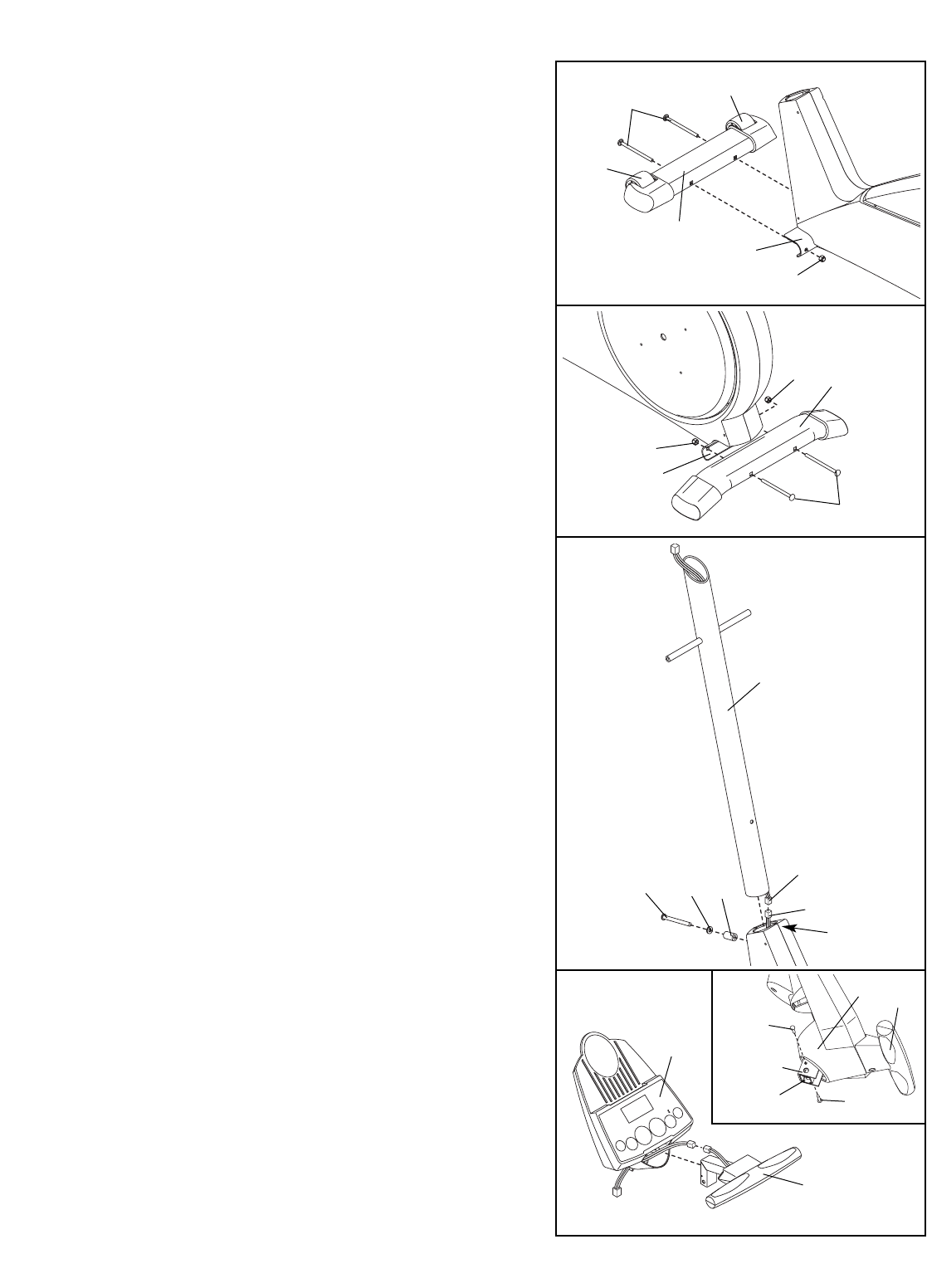

1. Identify the Front Stabilizer (3), which has Wheels (32)
attached to it. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 112mm Carriage Bolts (34) and two
M10 Nylon Locknuts (29). Make sure that the Front
Stabilizer is turned so the Wheels are not touching
the floor.
3
29
32
32
34
1
1
2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (4) to the Frame with two
M10 x 112mm Carriage Bolts (34) and two M10 Nylon
Locknuts (29).
34
4
1
3
2
86
87
1
63
83
70
3. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
the Lower Wire Harness (87). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack from the Wire Harnesses.
Insert the Upright (2) into the front of the Frame (1) as
shown. Be careful to avoid pinching the Wire
Harnesses (86, 87). Slide an M10 Split Washer (70)
and a Frame Spacer (83) onto the M10 x 88mm Button
Bolt (63), and insert the Button Bolt into the Frame and
the Upright. Make sure that the concave end of the
Frame Spacer is turned toward the Frame. Tighten
the Button Bolt into the welded nut on the Frame.
4. Connect the wire harness on the Handgrip Pulse
Sensor (81) to the indicated wire harness on the
Console (5). Insert both wire harnesses into the open-
ing in the bottom of the Console.
Refer to the inset drawing. Insert the metal tube on the
Handgrip Pulse Sensor (81) into the metal bracket
inside the Console (5) as shown. Be careful to avoid
pinching the wire harnesses. Align the holes in the
metal tube with the holes in the metal bracket, and
tighten two M4 x 16mm Screws (66) into the indicated
holes.
81
5
66
5
Bracket
66
81
4
2
29
29
Tube
