12

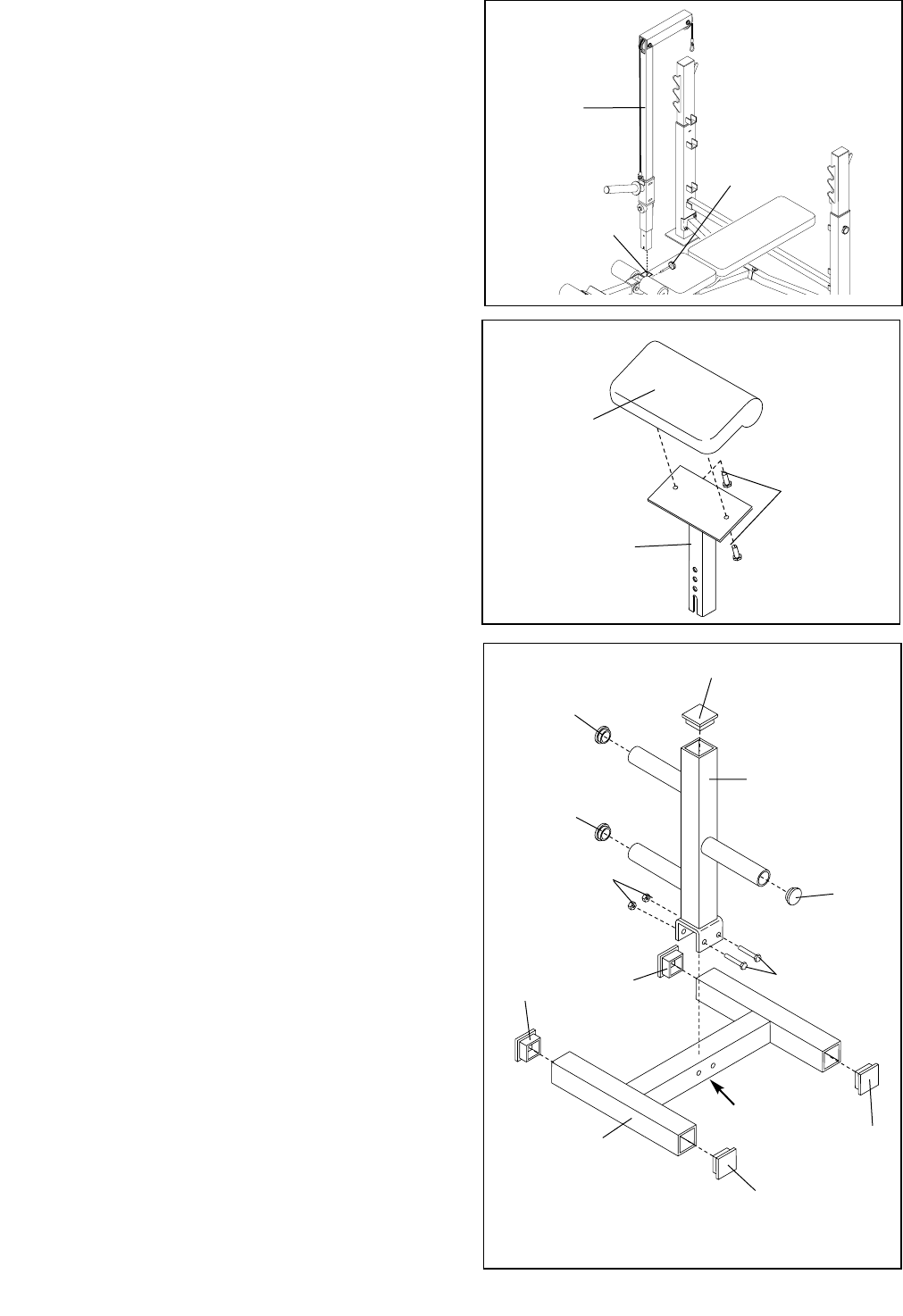

20. Attach the Curl Pad (44) to the Curl Post (42) with
two M6 x 16mm Screws (3).
20
42
3
44
21. Press three 48mm Round Inner Caps (12) into the
three welded tubes on the Weight Stand Upright (62).
Press a 2” Square Inner Cap (17) into the top of the
Weight Stand Upright.
Press a 2” Square Inner Cap (17) into each end of
the Weight Stand Base (49).
Attach the Weight Stand Upright (62) to the Weight
Stand Base (49) with two M10 x 68mm Bolts (33) and
two M10 Nylon Locknuts (1). Note: The Weight
Stand Base (49) must be turned so the two indi-
cated holes are closer to the top of the Weight
Stand Base (49) than the bottom.
21
17
17
62
12
49
12
12
17
33
1
17
17
Holes Upward
19. Insert the Lat Tower (9) into the Front Leg (19). The
Lat Tower must be turned as shown. Secure the
Lat Tower with the Adjustment Knob (36).
19
9
19
36
