S3.23 Assembly and Maintenance Guide
page 9
1 2 3 4 5 6

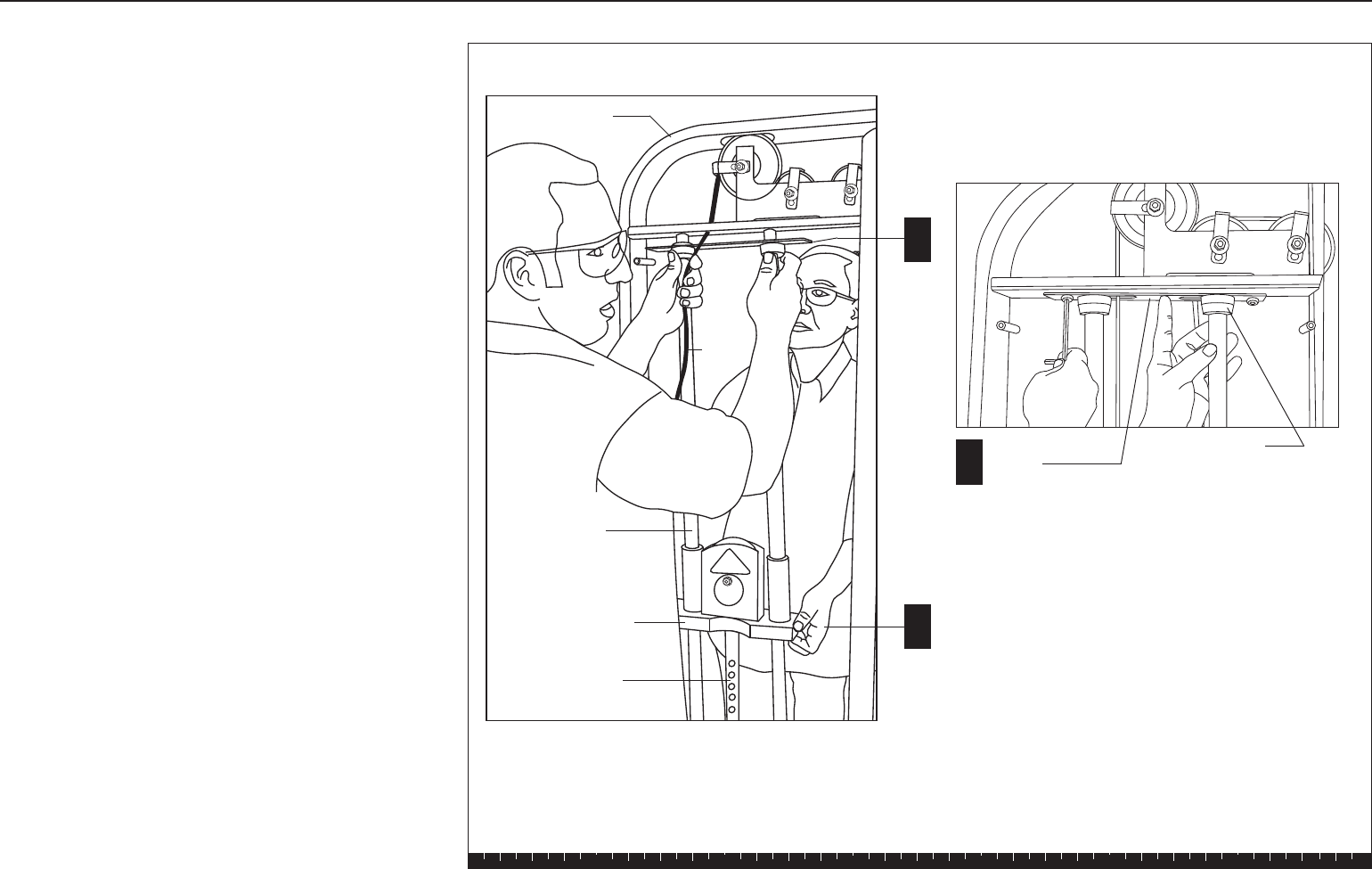

Step 2. Assemble Weight Stack
2. Assemble Weight Stack
Note: Perform the following steps on each Main
Upright. Complete the assembly steps for one side
before moving the other Main Upright.
A. Have your assistant lift the Top Cap Weight to
remove cable tension.
B. Use a hex key to remove the two buttonhead
screws and two washers that secure the Guide
Rod Bracket.
C. Remove the Guide Rod Bracket and Bumpers.
Top Cap Weight
B
C
A
Guide Rod
Bracket
Bumpers
Guide Rods
Cable
Main Upright
Selector Stem
