S3.23 Assembly and Maintenance Guide
page 15
1 2 3 4 5 6
Step 4. Attach Handles and Accessories
4. Attach Handles and
Accessories

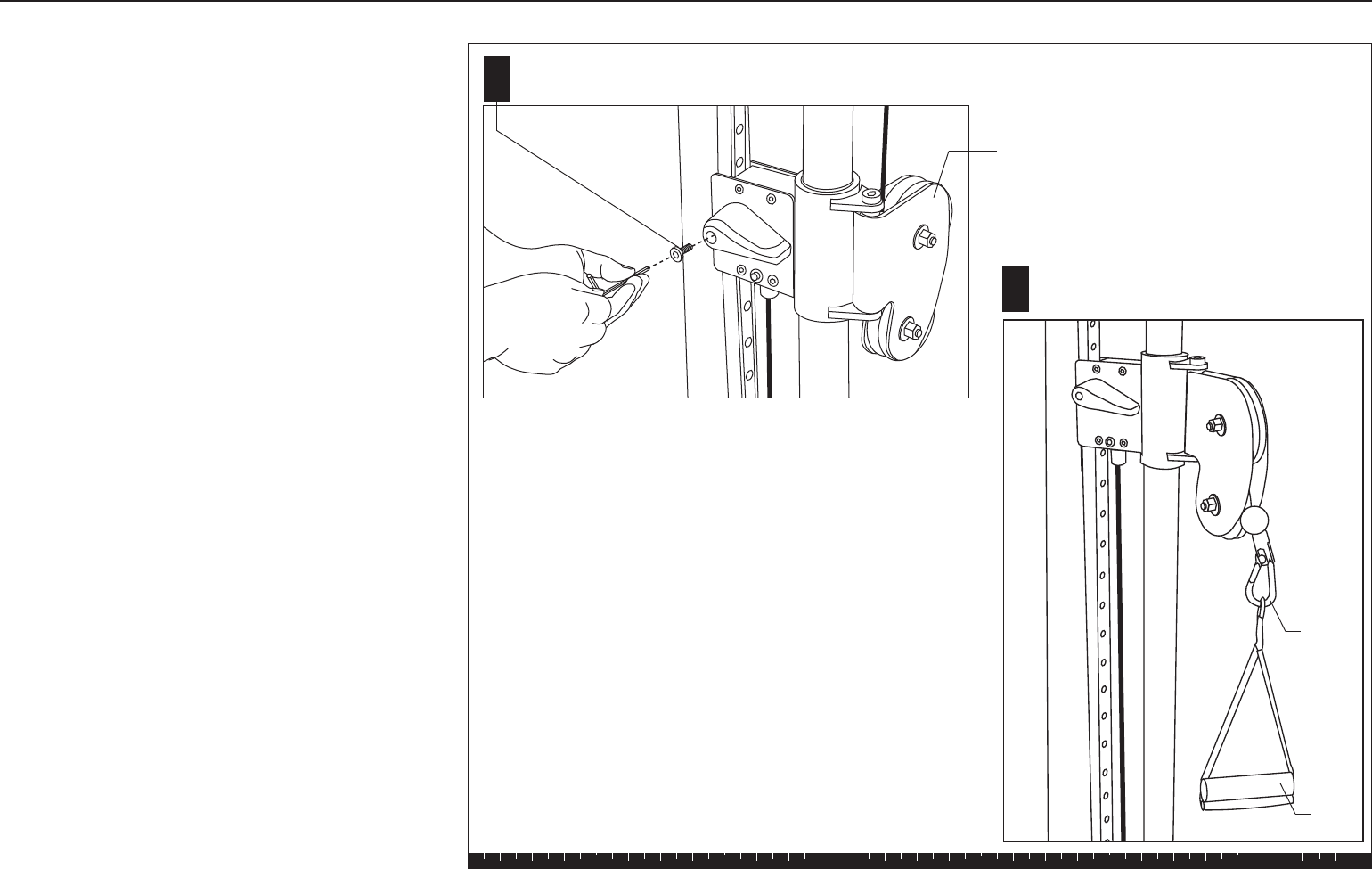

A. Install a Handle on each Pulley Assembly
using
one 5mm Socket head screw
Wrench tighten with a hex key.
Note: To adjust the outside pulley location, lift the
Handle and slide it to the desired location.
B. Attach the two Soft Handles or a Soft Ankle Strap
to the end of the cable using a Spring Clip.
This completes the assembly of your S3.23 Strength-
Training Fitness Equipment.
A
B
Install the Soft Handle or
Soft Ankle Strap.
Pulley Assembly
1 - 5mm Socket head screw on
each Pulley Assembly
Spring
Clip
Soft
Handle
