6

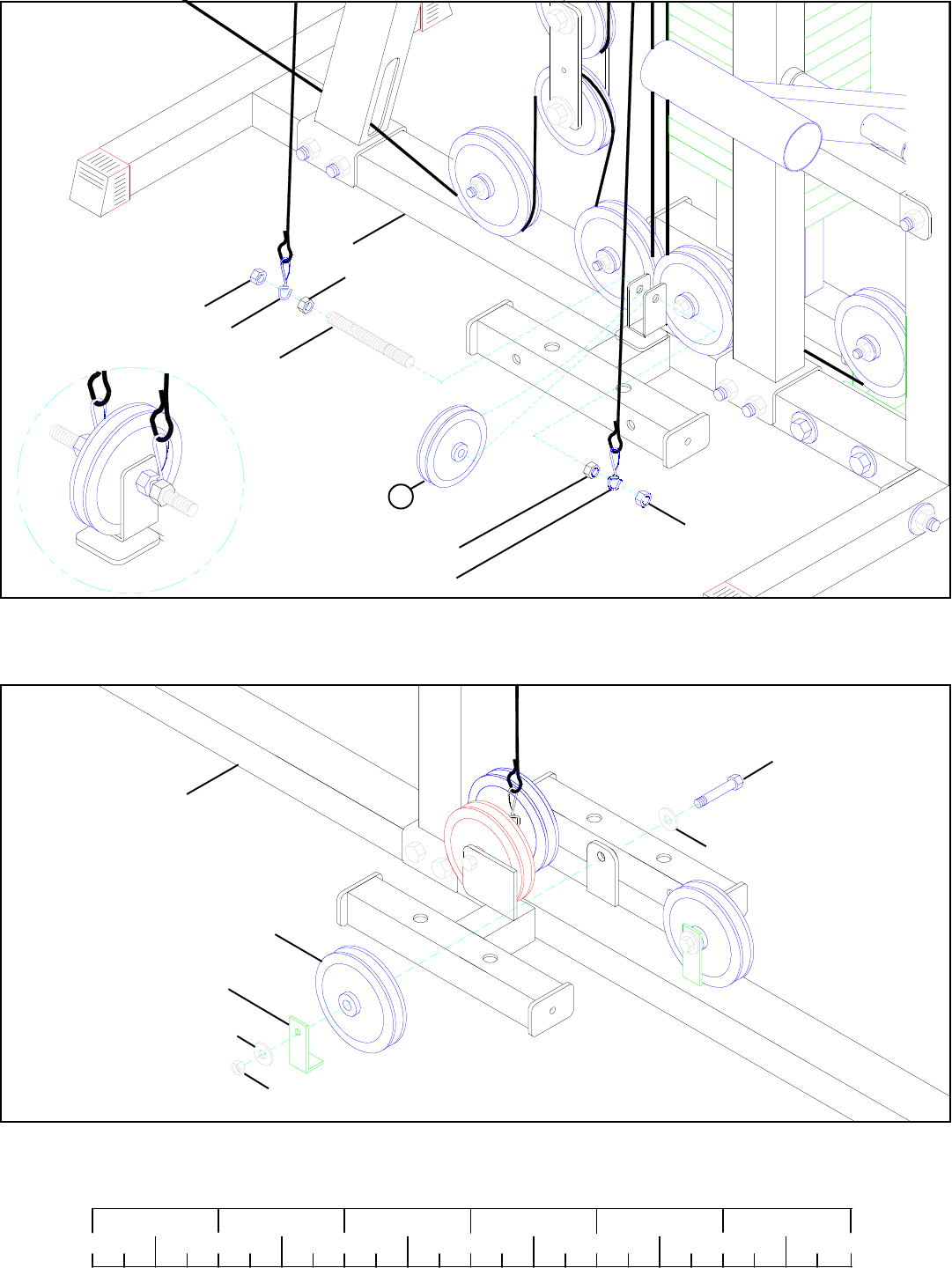

FIGURE 4
BASE
HEX NUT
3/8” LOCK NUT
2
STEP 4
• Assemble the two previously removed 3/8” HEX NUTS, two previously removed SWIVEL SNAPS, one 3-1/2” PULLEY (2), and two
previously removed 3/8” LOCK NUTS to the previously removed 3/8” THREADED SHAFT as shown in FIGURE 4.
HEX NUT
3/8” LOCK NUT
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
3/8” THREADED SHAFT
SWIVEL SNAP
SWIVEL SNAP
FIGURE 5
STEP 5
• Remove one 3/8 X 2” BOLT, two 3/8” WASHERS, one 2-7/8” L-BRACKET, one 4-1/2” PULLEY, and one 3/8” LOCK NUT from the
upper flat on the BASE as shown in FIGURE 5.
BASE
3/8” WASHER
4-1/2” PULLEY
3/8” WASHER
3/8” LOCK NUT
2-7/8” L-BRACKET
3/8” X 2” BOLT
