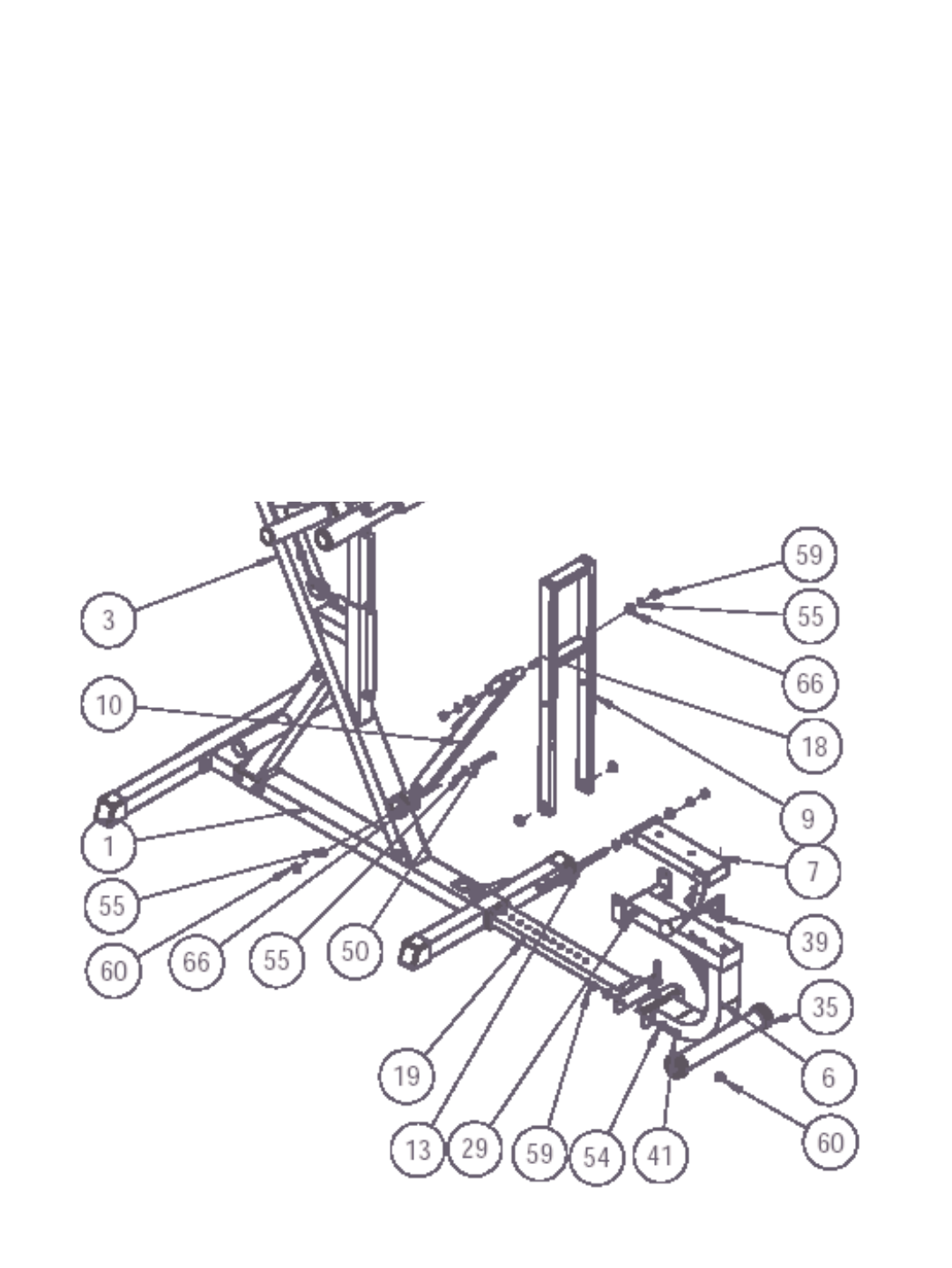

STEP 4
Insert the slide tube (19) into the base and secure with pedal pin adjustment. Connect slide tube
(19) and seat frame (6) using:
3 x (41) Bolt
5 x (54) Washer
2 x (59) Nylon locknut
Attach seat support (7) and back pad frame (9) to the seat frame (6) using:
4 x (66) Bushing 1 x (13) Bolt shaft M10*12*213
2 x (55) Washer 2 x (59) Nylon locknut M10
Attach back pad support (10) to the main upright (3) and the back pad frame (9) using:
1 x (50) Bolt M12*75 1 x (18) Bolt shaft M10*12*200
4 x (66) Bushing 4 x (55) Washer
1 x (60) Nylon locknut M12 2 x (59) Nylon locknut M10
ASSEMBLY
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
