- 49 -
(4) Programming the radius of the rounded corner is effective only when the type of
line is “1” (rectangle). When the type of line is “0”, designation of the radius is
ignored.
When the type of line is “1”, and the radius of the rounded corner is “000” or
omitted, a rectangle is printed.
(5) A circle is assumed when:

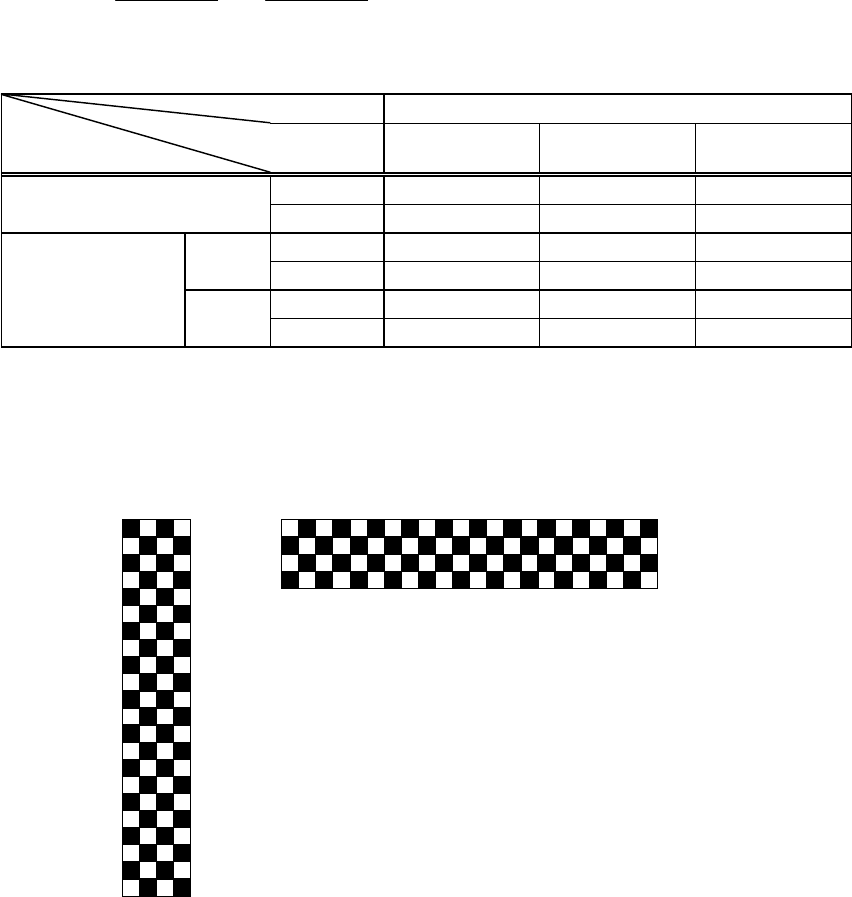

[Effective print area] [mm]
Model B-850
Item
Method Batch issue Cut issue
Strip issue for
auto labeler
*1
Effective print width Min. 10.0 10.0 10.0
Max. 216.8 216.8 216.8
Effective print Label Min. 11.0 23.0 21.4
length Max. 640.0 640.0 640.0
Tag Min. 13.0 23.4 23.4
Max. 640.0 640.0 640.0
“1: To perform the strip issue for the auto labeler, the backing paper rewind system and the
control unit are required on the auto labeler as external equipment.
(6) The jagged line is as shown below:
(7) The slant line and the arc are not jagged.
| X
2
- X
1
|
2
| Y
2
- Y
1
|
2
≤ [Radius of rounded corners]
=
