Connecting the Port Replicator
Locating Ports and Jacks
A port replicator is a device that attaches to your computer and contains additional jacks and ports, such as USB ports. A
port replicator may come with your computer, depending on the model you purchased. If you wish to purchase a port
replicator, shop Sony online at http://www.sonystyle.com/vaio or contact your local retailer.
The printer port on this port replicator is intended for printer connections only.

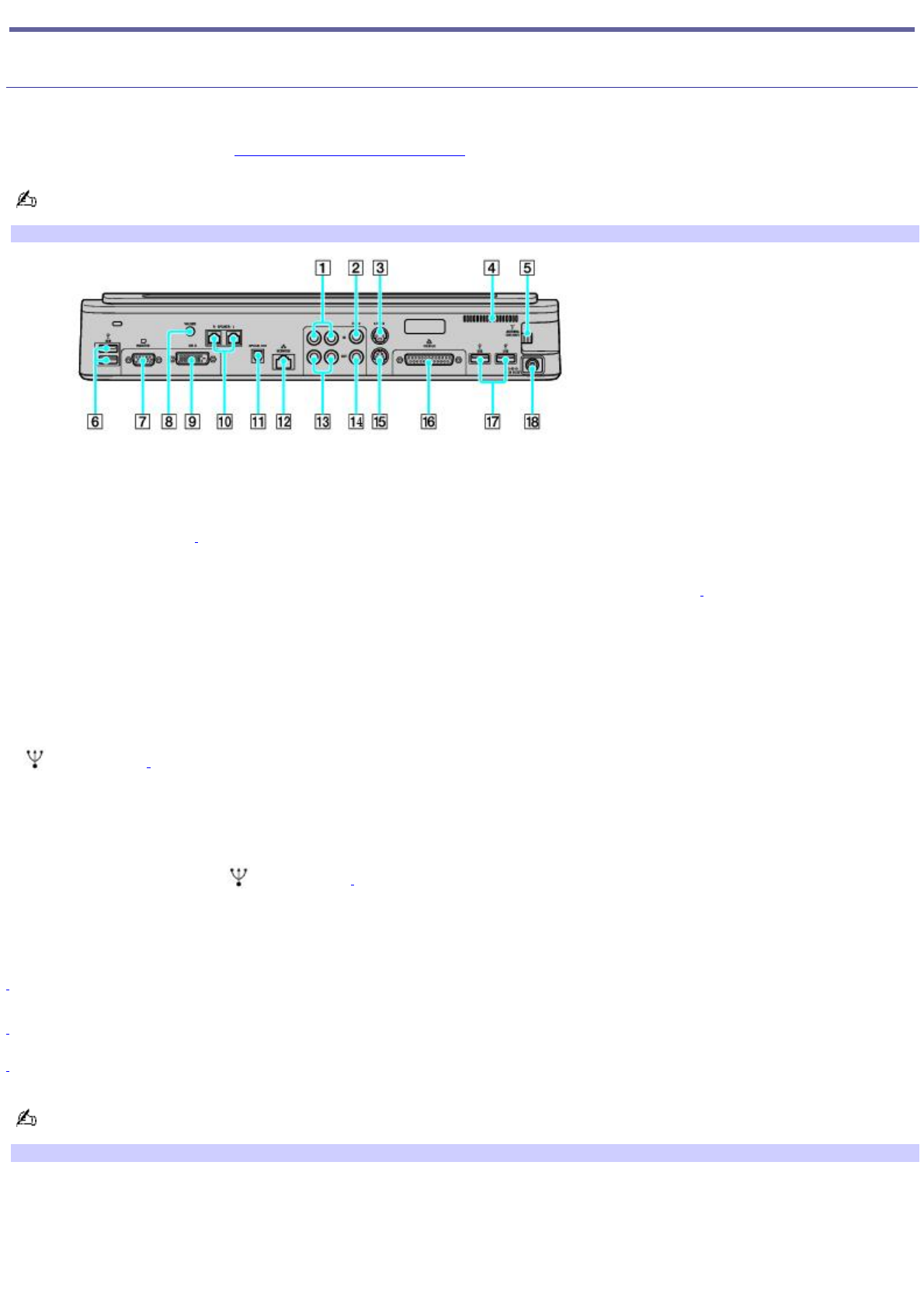

A/V Port Replicator
1 Composite Audio In jacks 10 Speaker jacks (right and left)
2 Composite Video In jack 11 Optical Out port
Output frequency (48 kHz
1
/44 kHz)
3 S Video In port 12 Network (Ethernet) port (10BASE-T / 100BASE-TX / 1000BASE-TX
2
)
4 Air vent 13 Composite Audio Out jacks
5 VHF/UHF port 14 Composite Video Out jack
6 USB 2.0 ports
3
15 S Video Out port
7 Monitor (VGA) port 16 Printer port
8 Volume jack 17 USB 2.0 ports
3
9 DVI-D port 18 DC IN port
1
Output frequency is 48 kHz for all frequencies except 32 kHz and 44.1 kHz.
2
Only selected models support a 1000BASE-TX connection.
3
Supports high-/full-/low- speeds.
The printer port on this port replicator is intended for printer connections only.
Business Port Replicator
