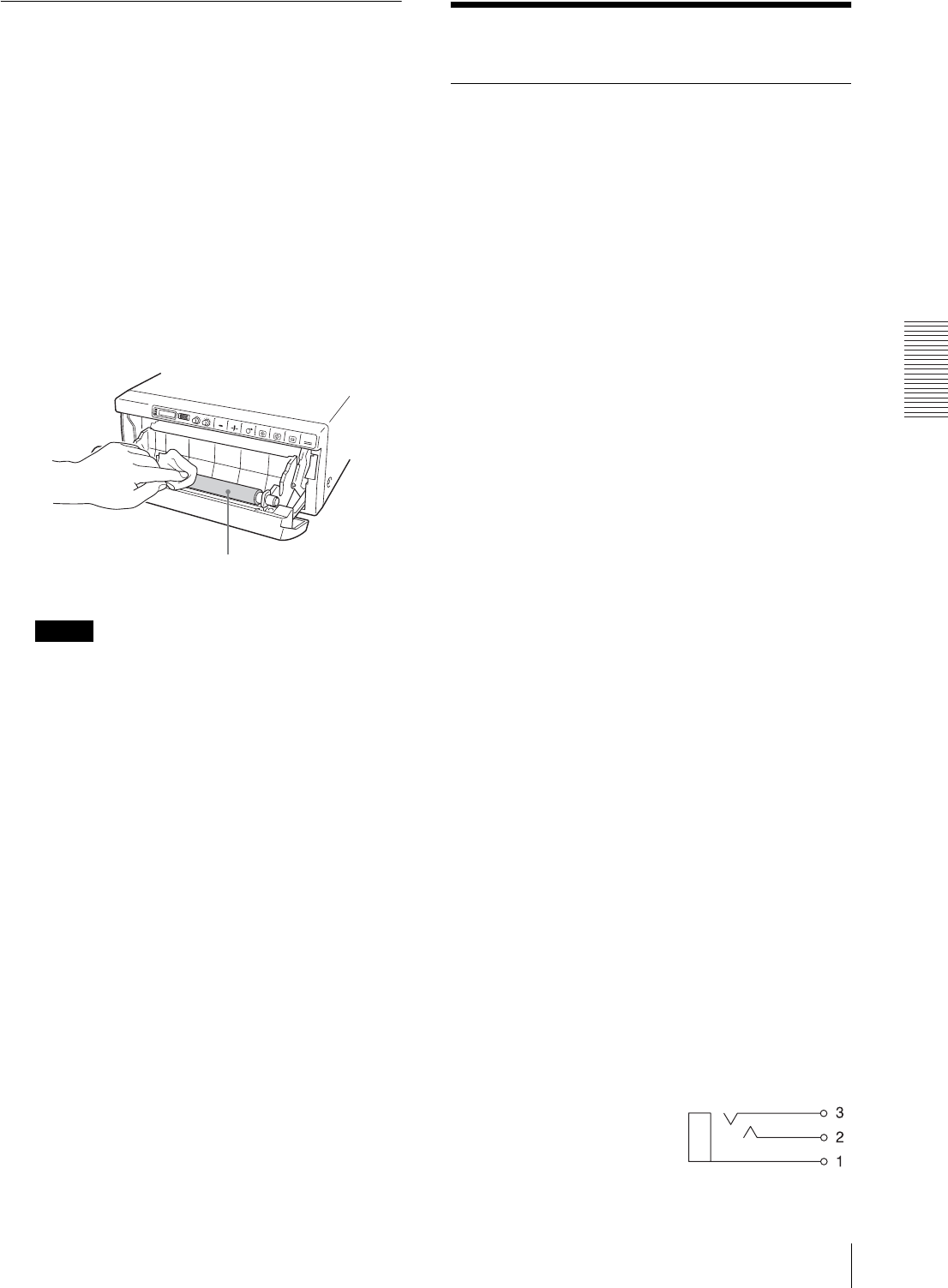

Cleaning the Platen Roller
If the paper cannot be ejected smoothly after printing,
the platen roller may be dirty.
In such a case, clean the platen roller with a soft cloth
moistened with a damp clothe soaked in water and a
mild detergent.
1
Press the power ON/OFF switch to ON to turn the
unit on.
2
Press the OPEN/CLOSE button to open the paper
door.
3
Clean the platen roller gently with a damp clothe
soaked in water and a mild detergent.
Notes
• After the surface of the platen roller wiped has
been dried completely, turn the platen roller to
clean another portion.
• Turn the platen roller with hands.
• The UP-970AD is provided with a paper cutter.
Take proper care to avoid cutting yourself.
4
Press the OPEN/CLOSE button to close the paper
door.
Specifications
UP-990AD
Power requirement
100 to 240 VAC, 50/60 Hz
Input current 2.4 A to 1.3 A max. at 25 °C
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Operating humidity
20 % to 80 %
Operating pressure
700 hPa to 1,060 hPa
Storage and transport temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage and transport humidity
20 % to 80 %
Storage and transport pressure
700 hPa to 1,060 hPa
Dimensions 316 × 132.5 × 305 mm (w/h/d)
(12 1/2 × 5/ 1/4 × 12 1/8 inches)
Mass 8 kg (17 lb 10 oz) (printer only)
Thermal head Thin-film thermal head, 2,560 dots
Gradation 256-level gradation (8-bit)
Resolution EIA: 1,280 × 508 dots
CCIR: 1,280 × 612 dots
Picture size When “S:STD” is selected from
“SIDE”
EIA: 188 × 143 mm
CCIR: 188 × 140 mm
When “S:SIDE” is selected from
“SIDE”
EIA: 249 × 190 mm
CCIR: 252 × 188 mm
Printing speed About 8 sec./image
(at standard setting)
Picture memory Analog mode:
6 frames (800 k × 8 bits per frame)
Digital mode:
3,414 × 2,560 dots max.
Input connector VIDEO IN (BNC type)
EIA or CCIR composite video signals
1.0 Vp-p, 75 ohms/high-impedance
(EIA/CCIR automatically
discriminated)
Output connector
VIDEO OUT (BNC type)
EIA or CCIR composite video signals
1.0 Vp-p, 75 ohm loop-through/EE
switchable
REMOTE connector (stereo mini jack)
Platen roller
