You can use the LCD screen (for PS one
™
) to view video from
camcorders and other devices. Connect the device to the PS one
™
console with an AV cable (sold separately) through the AV IN
jack on the LCD screen rear. Choose an AV cable that matches the
AV output jacks of the device, and connect it as shown in the
diagram below:
When an AV cable is connected, the LCD screen automatically
detects the signal of the connected device. To begin viewing,
simply start playback on the device.
You can play games on the PS one
™
console using a TV screen
even when an LCD screen (for PS one
™
) is connected to the
console.
Use the AV MULTI OUT connector on the LCD screen rear to
connect the console to a TV set using the AV cable (integrated
audio/video) supplied with the console.
Connection method
Refer to the PS one
™
console instruction manual and the
instruction manual supplied with your TV for instructions on
connecting the console to a TV set.
AV MULTI OUT
connector
AV cable (integrated audio/video)

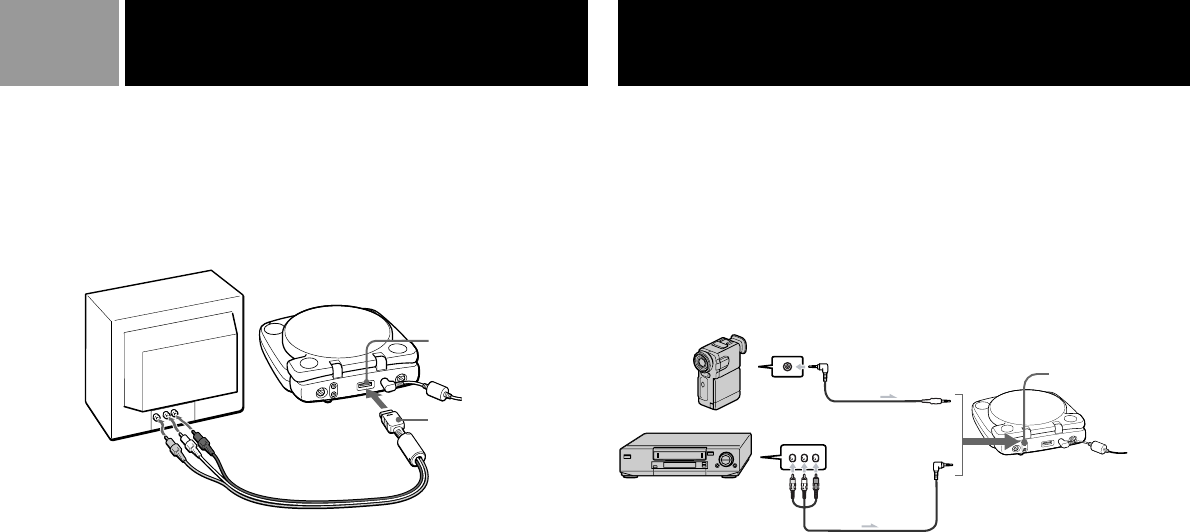

Connecting video equipment to the LCD
screen
Connecting the PS one
™
console
to a TV set
AV cable
(integrated audio/
video) connector
To AV output jack (mini-
jack) of camcorder or
digital camera
To AV output jacks of
VCR or DVD player
To AV IN
jack
SCPH-180 U AV
connection cable
(sold separately)
AV cable (VCR type)
(sold separately)
