SIR-3400H / SIR-3032i / SIR-3032W

15. Data Recording/Playback

15-6. Trigger Recording

15-6-1. Connecting the Trigger Signal

1 Set the trigger mode Single or Multi according to the purpose. (See section 8-1.)

- In REC-PAUSE mode -

<When set to Single>

Recording starts when the trigger input signal changes from High to Low, and it continues recording

until the STOP key is pressed.

<When set to Multi>

Recording starts when the trigger input signal changes from High to Low, and the mode changes to

REC-PAUSE when the signal changes from Low to High.

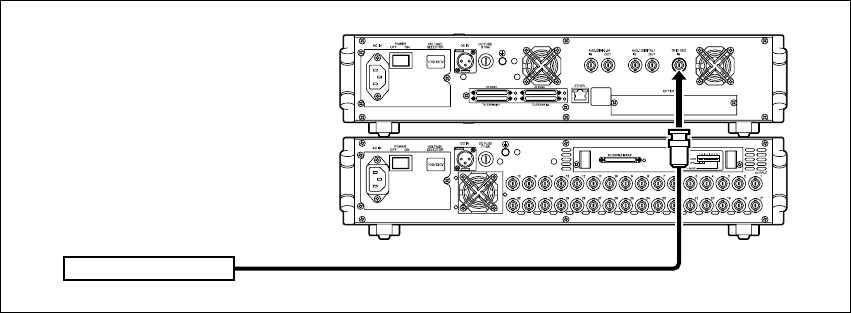

2 Use a BNC cable (sold separately) to connect the TRIG REC IN connector on the rear panel and the

trigger signal.

c

. It the ADDRESS duration is less than 2 seconds, the next signal may not start up.

. The input voltage level should be TTL level.

Signal source
