Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4949-116-1 CASE ASSY, BATTERY
52 1-782-709-11 WIRE (FLAT TYPE) (22 CORE)
53 A-3293-759-A SWITCH BOARD, COMPLETE
54 3-335-797-91 SCREW (M1.4), TOOTHED LOCK
55 A-3293-758-A POWER BOARD, COMPLETE
56 4-964-015-31 KNOB (OPEN)
57 X-4949-660-1 BELT (S) ASSY • • • (SILVER)
57 X-4949-661-1 BELT (B) ASSY • • • (BLUE)(AEP,FR,UK,HK,JEW)
58 4-995-402-01 SPRING (LOCK), TENSION
59 4-995-435-01 DAMPER (R50)
60 X-4949-114-1 CHASSIS (MAIN) ASSY
61 A-3293-760-A MAIN BOARD, COMPLETE (EXCEPT FR)
61 A-3293-884-A MAIN BOARD, COMPLETE (FR)
62 4-995-436-01 SCREW (HP), STEP
63 4-984-017-21 SCREW (1.7), TAPPING
64 4-995-434-01 HOLDER (DIAL)
65 1-475-378-11 SWITCH UNIT (WITH JOG DIAL)
66 4-963-883-41 SCREW (M1.4), PRECISION PAN
67 4-995-432-01 HINGE, BATTERY
68 4-972-529-11 KNOB (HOLD) • • • (SILVER)
68 4-972-529-21 KNOB (HOLD) • • • (BLUE) (AEP,FR,UK,HK,JEW)
69 4-995-431-01 LID, BATTERY CASE • • • (SILVER)
69 4-995-431-11 LID, BATTERY CASE • • • (BLUE)
(AEP,FR,UK,HK,JEW)
70 4-995-437-01 SCREW (DAMPER)
71 3-349-825-52 SCREW, PRECISION
72 4-017-441-01 CUSHION (B) (AEP,UK,HK,JEW)
74 4-998-368-01 SHEET (OPEN) (AEP,UK,HK,JEW)
75 4-997-493-01 SPRING (LOCK),COMPRESSION

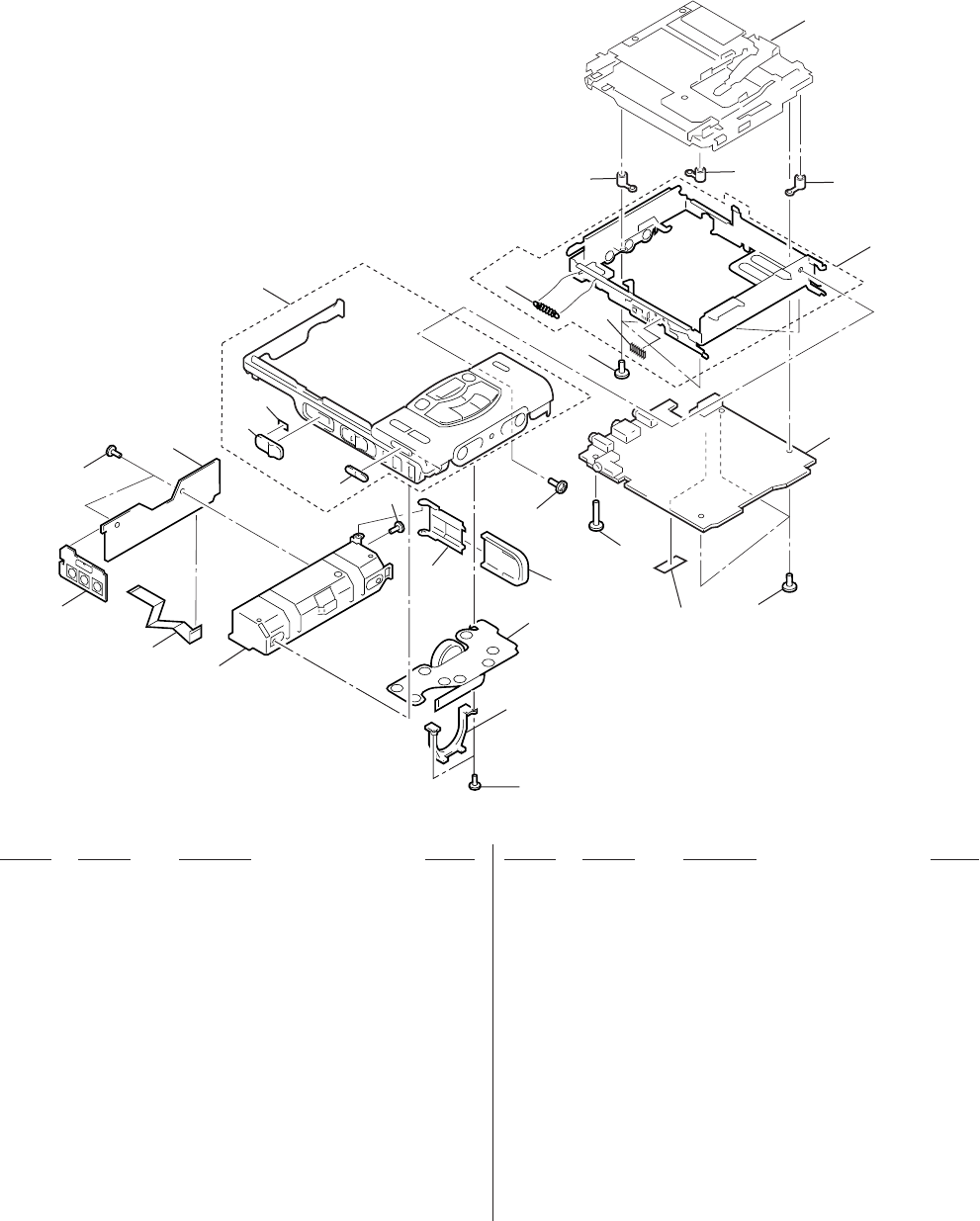

7-2. CHASSIS SECTION
Mechanism dec
51
52
53
54
54
55
56
74
57
58
59
59
59
60
61
62
72
63
64
65
69
66
67
68
71
70
75
