Additional Information
Specifications
LCD panel Panel type: a-Si TFT Active Matrix
Picture size: 18.1 inches (46 cm)
Input signal format RGB operating frequency*
fh: 30 – 92 kHz
fv: 48 – 85 Hz
Pixel efficiency 99.99 %
Resolution H: max. 1280 dots
V: max. 1024 lines
Power requirements AC 100 – 240 V, 50 – 60 Hz,
1.0 – 0.6 A
Power consumption Max. 48 W
Dimensions (w/h/d) Including the stand:
Approx. 468 × 422 × 207.5 mm
(18
1
/2 × 16
5
/8 × 8
1
/4 in.)
Monitor only:
Approx. 468 × 354.5 × 90 mm
(18
1
/2 × 14 × 3
5
/8 in.)
Mass Approx. 9 kg (19 lb 14 oz)
including the stand
Plug & Play DDC/DDC2B/DDC2Bi
Supplied accessories See page 6.
* Recommended horizontal and vertical timing
conditions
Horizontal sync width duty should be more than 4.8% of total
horizontal time or 0.8 µsec., whichever is larger.
Horizontal blanking width should be more than 2.5 µsec.
Vertical blanking width should be more than 450 µsec.
Design and specifications are subject to change without
notice.

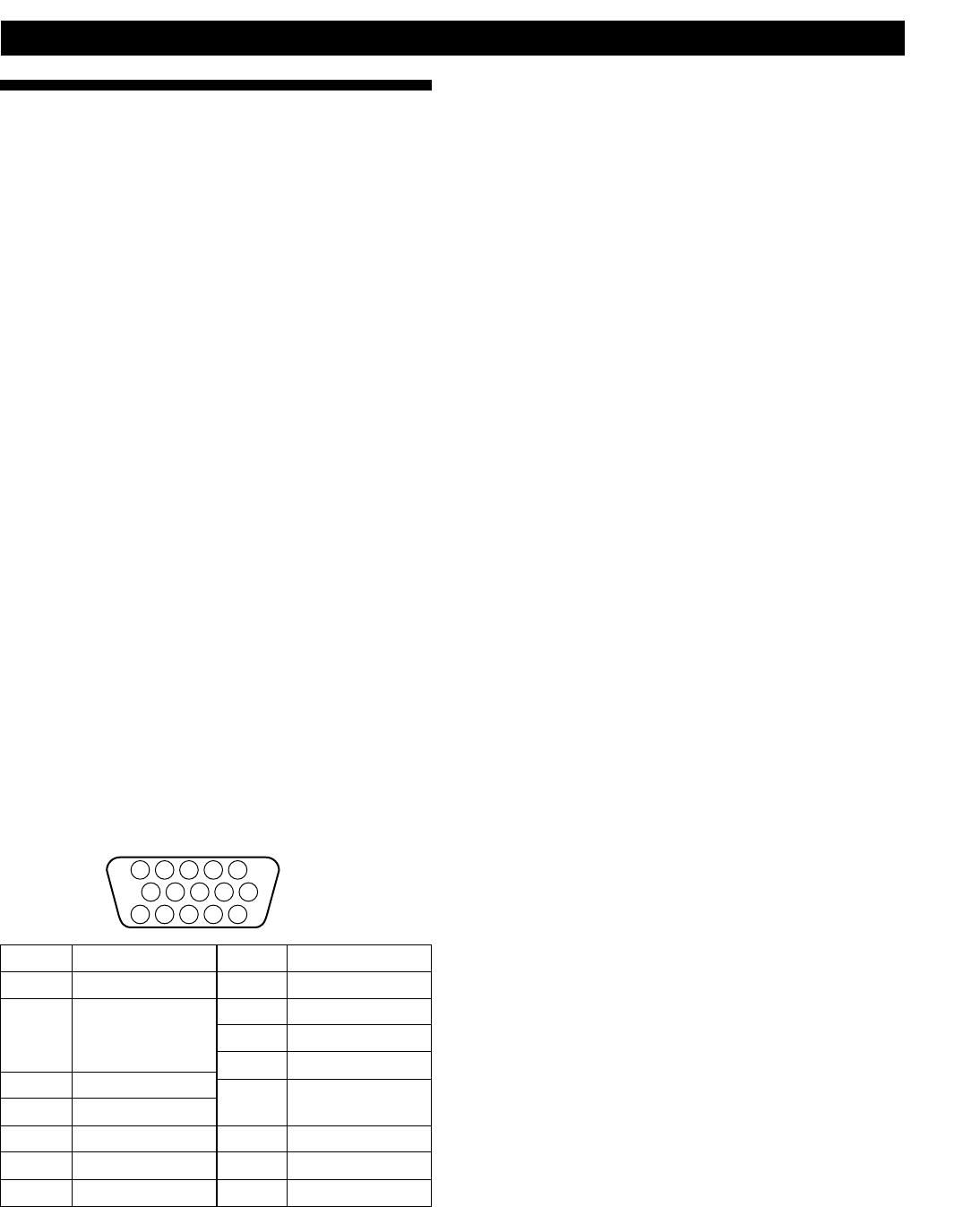

…1/…2 pin assignment
* Display Data Channel (DDC) Standard of VESA
5 4 3 2
1
678910
1112131415
Pin No.
1
2
3
4
5
6
7
Pin No.
8
9
10
11
12
13
14
15
Signal
Red
Green
(Composite Sync
on Green)
Blue
ID (Ground)
DDC Ground*
Red Ground
Green Ground
Signal
Blue Ground
DDC + 5V*
Ground
ID (Ground)
Bi-Directional
Data (SDA)*
H. Sync
V. Sync
Data Clock (SCL)*
