⑩ Tighten the screws on the case.
⑪ After installing the hard disk, you must format the hard disk from the setting
menu.
- The first SATA cable port on the main board must be connected at all times.
If a hard disk is not connected, the DVR may not operate normally (or at all).
B. Hard disk replacement
After shutting down the DVR, disconnect the power supply.
① Loosen the screws on the left, right and rear side of the DVR casing.
② Remove the cover of the main unit.
③ After removing all of power/SATA cable connected to hard disk, separate
hard disk bracket from the body.
④ Loosen the screws on the left and right side of the bracket holding the hard
disk.
⑤ Separate the hard disk from the bracket holding the hard disk.
⑥ In the reverse order of removing the hard disk, assemble the new hard disk.
⑦ After replacing the hard disk, turn on the power of the device.
⑧ Reference
- Each SATA cable must be connected to the connecting port precisely.
- Do not vertically put the hard disk in upright position or put other objects on
top of the hard disk.
- When connecting/disconnecting the hard disk, do not use a motored tool.

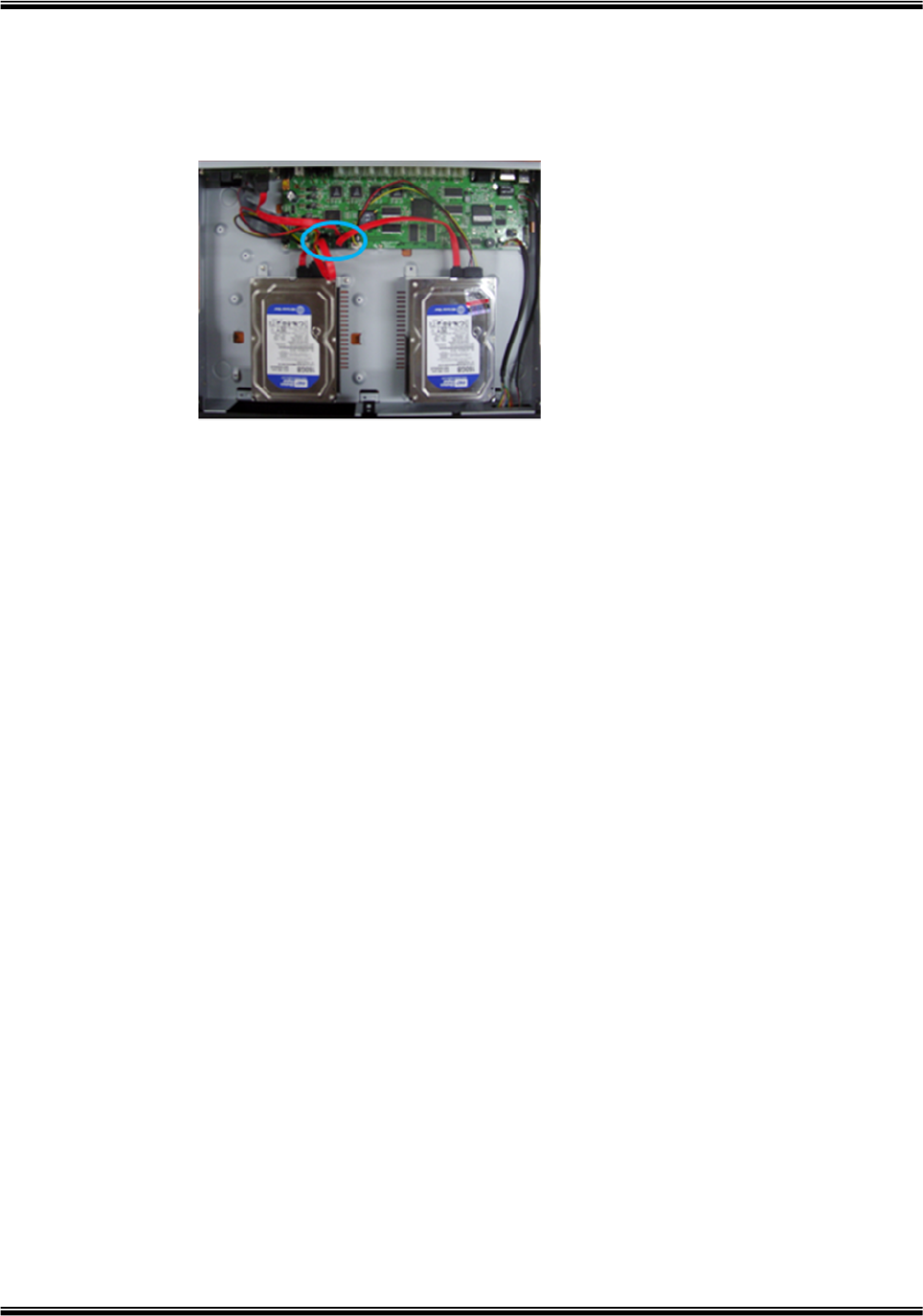

- Refer to the following when adding/replacing the hard disk.
