14 ST60 Depth Instrument Owner’s Handbook
• It is at least 20 in (500 mm) from radio receiving equipment.
• There is reasonable rear access for installation and servicing.
EMC installation guidelines
All Raymarine equipment and accessories are designed to the best industry
standards for use in the recreational marine environment.
Their design and manufacture conforms to the appropriate Electromagnetic
Compatibility (EMC) standards, but correct installation is required to ensure that
performance is not compromised. Although every effort has been taken to ensure
that they will perform under all conditions, it is important to understand what
factors could affect the operation of the product.
The guidelines given here describe the conditions for optimum EMC performance,
but it is recognized that it may not be possible to meet all of these conditions in all
situations. To ensure the best possible conditions for EMC performance within the
constraints imposed by any location, always ensure the maximum separation
possible between different items of electrical equipment.
4.33 in (110 mm)
0.95 in
(24 mm)
0.6 in
(15 mm)
3.54 in (90 mm)
diameter
4.53 in (115 mm)
4.85 in (123 mm)
0.25 in
(6.2 mm)
1.4 in
(35 mm)
3.54 in (90 mm)
diameter
4.85 in (123 mm)
D5785-4

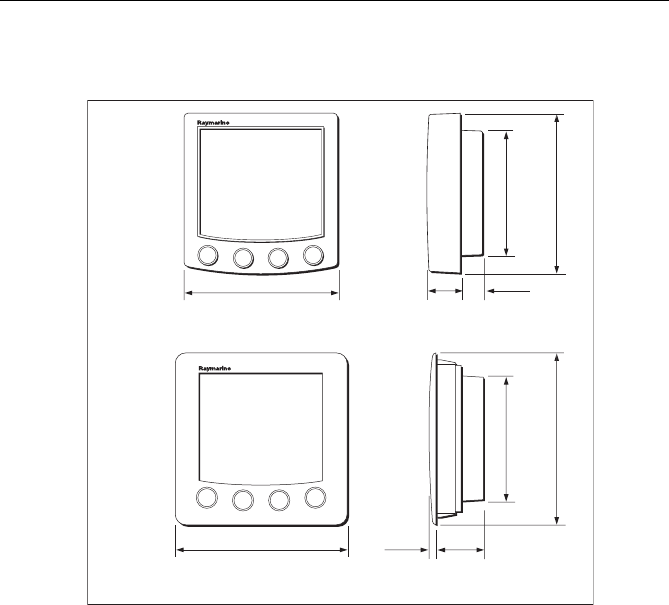

ST60 instrument dimensions
With standard
bezel
With low
profile bezel
