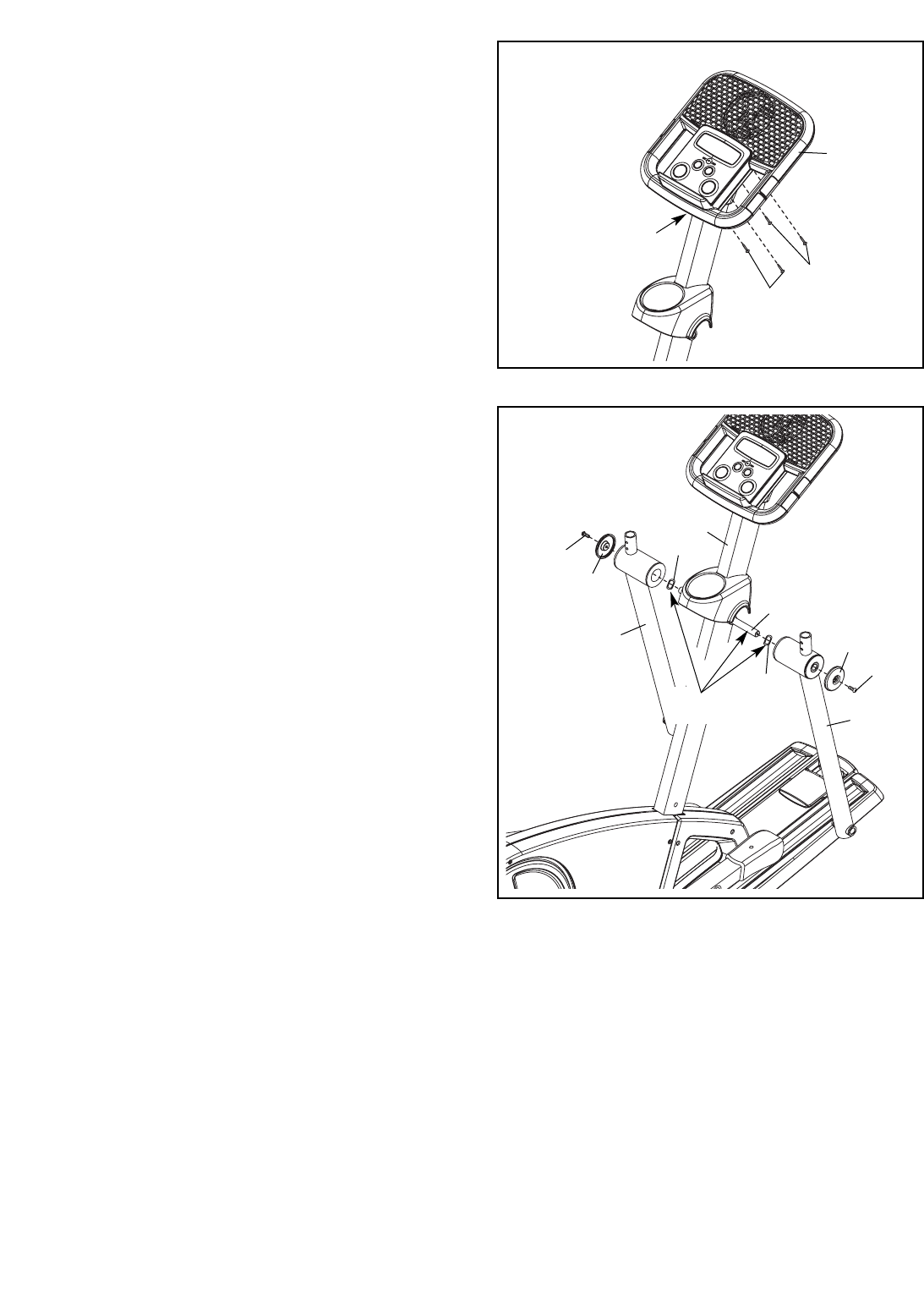

7. Slide the Console Cover (96) (see the drawing
in step 6) upward to the Console (4). Attach the
Console Cover with four M4 x 16mm Screws
(84).
96
84
84
4
8. Apply a generous amount of the included
grease to the Pivot Axle (16). Then, apply a
small amount of grease to two Wave Washers
(88).
Insert the Pivot Axle (16) into the Upright (2).
Slide a Wave Washer (88) onto each end of the
Pivot Axle.
Identify the Left Upper Body Leg (6), which is
marked with an “L” sticker. Slide the Left Upper
Body Leg onto the Pivot Axle (16). Attach the
Left Upper Body Leg with an M6 x 16mm Button
Screw (80) and a Large Axle Cover (20). Attach
the Right Upper Body Leg (124) in the same
way.
80
20
6
88
16
88
124
20
80
2
Grease
