NOTE: The gray circle indicates the primary viewing area.
MAKING OPTIONAL SURROUND-SOUND CONNECTIONS
Connecting Accessory Devices to Your TV
*“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories.
Y
our TV has extra jacks that allow you to con-
nect to an external audio amplifier system and
a powered subwoofer. This connection option will
provide a surround-sound experience similar to a
movie theater or concert hall.

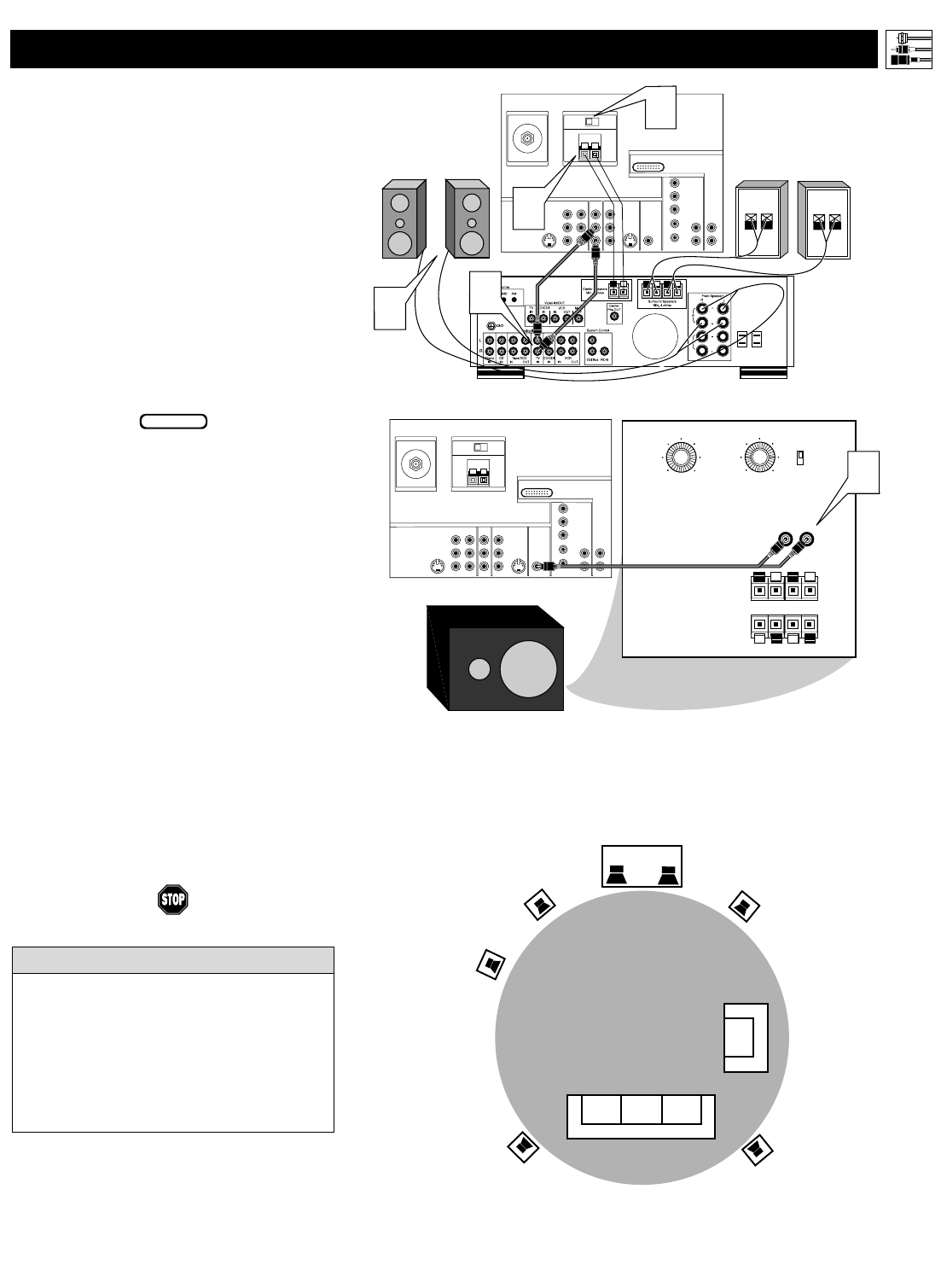

To make the connections shown in this example,
you will need:
•
two cables for audio connections (standard
RCA connectors)
• four paired wires for speaker connections
• one cable for a subwoofer connection
(standard RCA connectors).
NOTE: The cables are not supplied with your TV.
You should be able to buy them at most stores
that sell electronics. Or you can call our
Customer Care Center at 1-800-531-0039.
1
Connect from the Center Speakers out-
put jacks on the amplifier with Dolby Pro
Logic* or Dolby Digital to the correspon-
ding CENTER CHANNEL INPUT jacks on
the rear of the TV. Place the TV’s AMP
switch in the EXT (external) position.
2
Connect from the L(eft) and R(ight)
AUDIO OUTPUT jacks on the rear of the
TV to the L(eft) and R(ight) TV IN jacks on
the rear of the Dolby receiver.
3
Connect from the receiver’s front and
surround speaker connectors to the front
and rear surround speakers.
4
Connect from the SUBWOOFER output
jack on the rear of the TV to the L(eft) and
R(ight) Low Level Input jacks on the rear of
the powered subwoofer.
5
Set the TV’s AUDIO OUT control to
FIXED. See page 10.
The diagram below, right shows how to arrange the
speakers and subwoofer for surround sound.
• If you use a single cable to make the connec-
tion to the powered subwoofer, you will need
to increase the volume on the back of the
subwoofer to compensate for the absence of
the second cable.
• You must adjust the trim of the powered sub-
woofer at the powered subwoofer. Trim refers
to the fine adjustments of volume level.
H
ELPFUL HINTS
11
