6.1 MOUNTING BRACKET INSTALLA-
TION
A. Clean the front of the cylinder head so that the
mounting plate will sit flat when installed.
B. Install the primary mounting plate using a
1-1/4" bolt in the hole closest to the center of
the engine.
C. Install one of the supplied 3/8" diameter long
bolts through the supercharger mounting plate,
a long spacer, the primary mounting plate and
into the top outside hole in the head. (See Fig.
6-a, 6-b for passenger side mount and Fig.
6-c, 6-d for driver side mount.)
D. Install the remaining spacers and appropriate
length bolts with washers to connect the
supercharger mounting plate to the primary
mounting plate and the head.
6-1
Section 6
MOUNTING BRACKET/SUPERCHARGER INSTALLATION

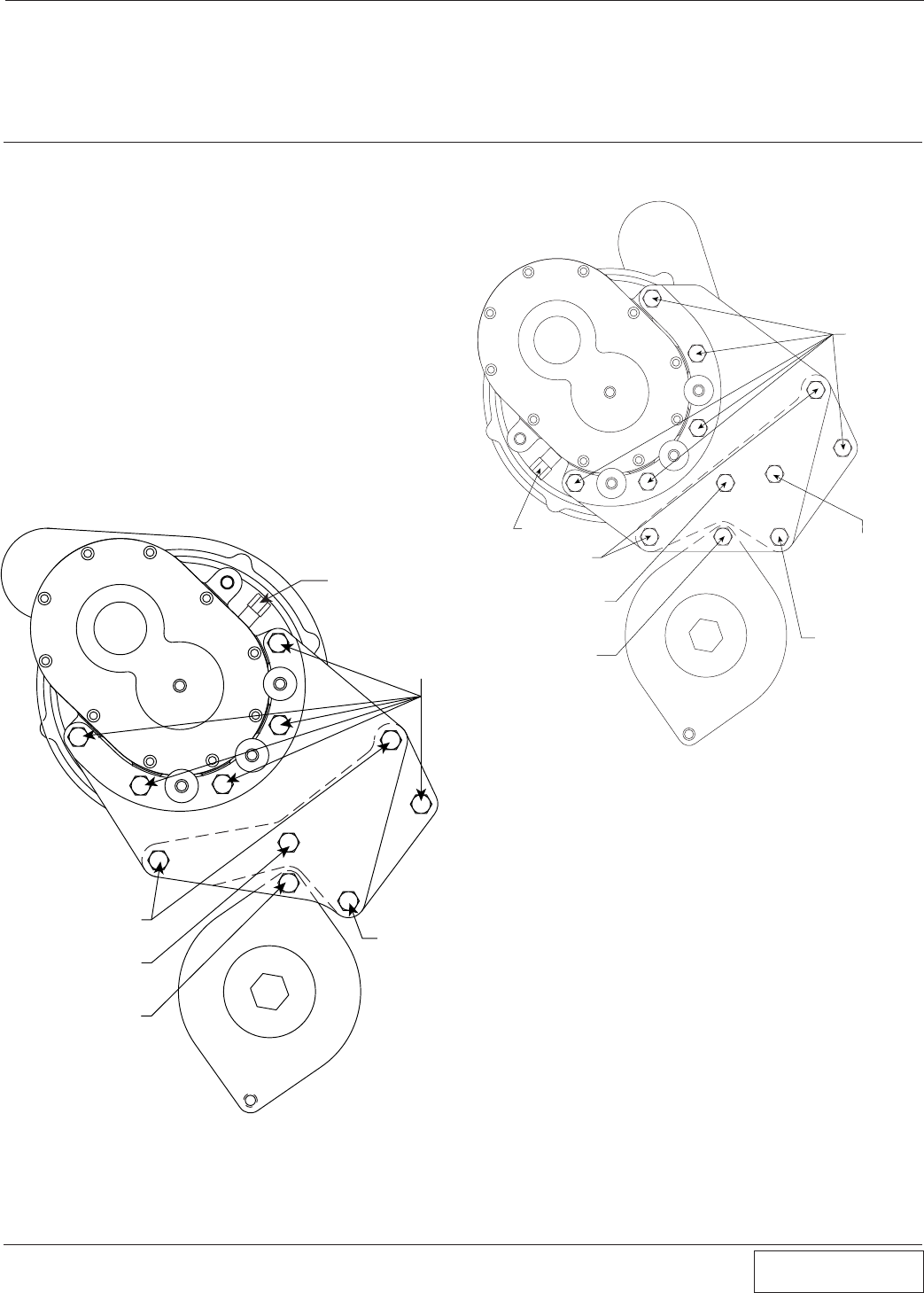

Fig. 6-a / Passenger side supercharger mount.
(64-68 Mustang)
E. For passenger side installations, install a 3/8"
x 5" bolt through the supercharger mounting
plate, the alternator pivot boss, the supplied
spacer and into the primary mounting plate.
3/8-16 x
5.75" BOLT
3/8 - 16 OR 7/16-14 x
5.75" BOLT
(DEPENDING ON HEAD)
3/8-16 x
1.25" BOLT
3/8-16 x 5.0" BOLT
3/8-16 x 5.0" BOLT
ALTERNATOR
OIL FEED
Fig. 6-b / Passenger side supercharger mount
(69 Mustang)
3/8-16 x
5.75" BOLT
3/8 - 16 OR 7/16-14 x
5.75" BOLT
(DEPENDING ON HEAD)
3/8-16 x
1.25" BOLT
3/8-16 x 5.0" BOLT
3/8-16 x 5.0" BOLT
ALTERNATOR
OIL FEED
3/8-16" x .75" BOLT &
4 WASHERS-OPTIONAL
(CAN BE USED TO
SECURE OIL DIPSTICK)
