2. Apply the parking brake to access the
jumper harness connector.

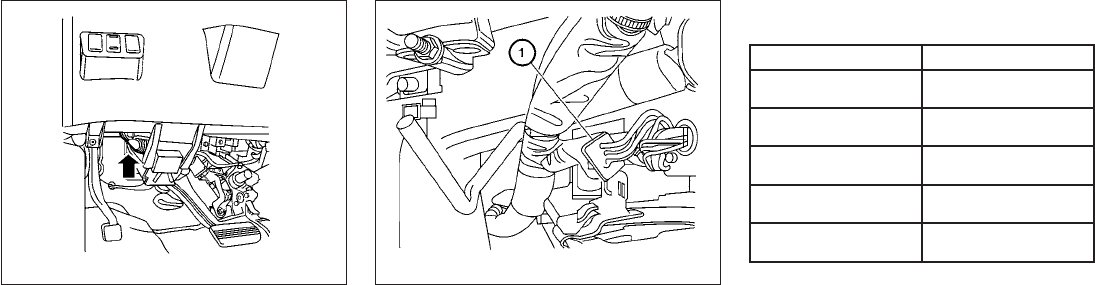

3. Locate the jumper harness connector under
the lower portion of the instrument panel.
Theconnector istaped tothe wiringharness
᭺
1
as indicated.
● The connector is marked with a white tag
with “elec brake conn”.
Wire color designation for electric trailer brake
controller jumper harness.
WIRE COLOR NOTE
RED/GREEN Vehicle stop lampswitch
to trailerbrake controller.
BLACK Brake controllerground
(-).
BROWN/WHITE Trailer brakecontroller
switched output.
RED/BLUE Trailer brakecontroller
illumination.
RED Fused trailerbrake con-
troller batteryfeed (B+).
LTI0118 LTI0115
Technical and consumer information 9-35
